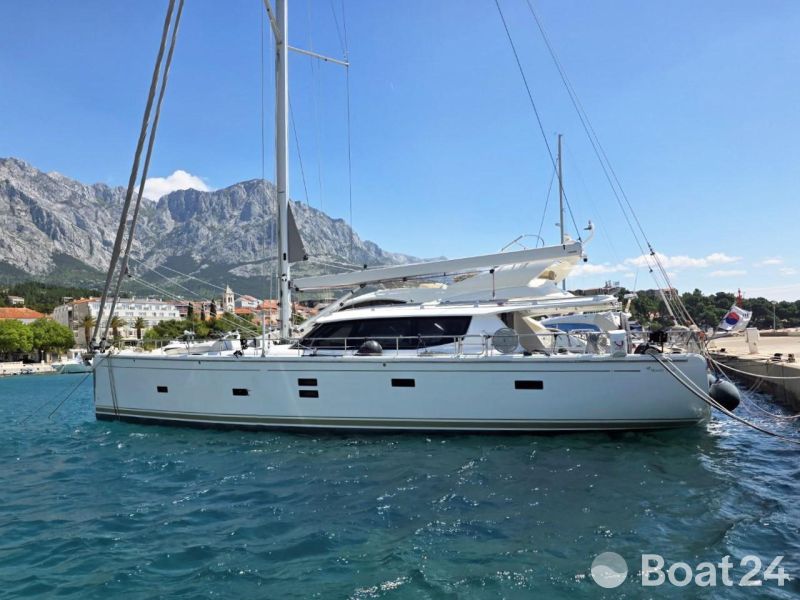

Experience the deck saloon feeling at its most impressive size. The Moody DS54 boasts the sense of space and comfort that usually comes with a 60-foot sailing yacht. While its design sets new standards, it remains faithful to the legendary Moody qualities: hand-crafted luxury, effortless handling and exemplary suitability for all weather conditions. The Moody DS54. A bluewater yacht for all seasons. For all seas.
Registered under San Marino flag, VAT not paid.
Layout: 4 cabins, 8+2 berths, 3 heads.
Fully equipped for blue water cruising!
Powered by Yanmar diesel engine with 146 HP power.
Additional photos available on request.
Contact us for more details or to arrange a visit to the yacht.
Yacht specifications:
General *Builder: Moody/HanseYachts AG (Germany) *Designer: Dixon Yacht Design *Flag of Registry: San Marino (non-EU) *Hull number last digits: DE-MOO54xxxxx24 *CE Certificate: A - 12 *Hull Type: Fin w/bulb & spade rudder *Rigging Type: Fractional Sloop *12 hull windows (6 each side)
Materials *Hull material: GRP (Glass Reinforced Plastic), isophthalic gelcoat, colour Off White *Keel: L-keel *Ballast Type: Cast iron *Rudder: GRP rudder with sea-water resistant aluminium shaft and selfaligning bearings Deck: Flexiteek deck, gelcoat colour: Off White
Dimensions Length in registration documents: *Length overall (LOA) (m.): 17,17 m *Length on waterline (LWL): 15,55 m *Beam: 5,19 m *Depth: 2,34 m (shallow keel) *Mast length above waterline: 24.80 m *Displacement: 24,700 kg *Ballast: 6,380 kg
Engine *Number of engines: 1 *Model: Yanmar 4LV150 (diesel with shaft drive) *Power: 107 kW / 146 HP *Working hours: - *Propeller: 4 bladed, foldable *3 Electronic throttle controls (double in cockpit on both sides and one on navigation desk)
Tankage *Fuel tank capacity (l): 782 (522 + 260) *Fresh water tank capacity (l): 920 *Blackwater system (appr. 85 l per head) with deck extraction and seacock
Accommodation 4 cabins, 8+2 berths, 3 heads *Interior furniture in high quality marine plywood, satin varnished Deck saloon: *U-shaped saloon settee with saloon table with electric high/low leg that can be converted to 2 extra berths (leather upholstery) on portside *Navigation desk with seat (leather upholstery) on starboard side *Sliding door in deck house with curtains Master cabin with ensuite head in bow: *Master cabin with large island double bed, hanging lockers, vanity table with tabouret *Ensuite head with electric toilet, washbasin and separated shower stall, mirror on door Portside VIP guest cabin: *Guest VIP cabin in midship with long 'Queen size' double bed, hanging lockers *Access door straight from cabin to portside head with electric toilet, washbasin and separated shower room (toilet inside shower room), mirror on door Starboard guest cabin: *Starboard guest cabin in midship with double bed, hanging lockers Portside aftcabin and aft dayhead: *Aftcabin with 2 single beds, hanging lockers *Aft head with Jabsco manual toilet, washbasin, shower and washing machine with dryer function, front opening Sail locker in bow: *Sail locker with extensive storage space and with entrance ladders and shelves
Galley U-shaped galley *Stove with 3 gas burners and oven Eno *Refrigerator Isotherm, top and front loading *Stainless-steel double-drawer fridge-freezer Vitrifrigo including icemaker *Dishwasher *2 Sinks with mixing tab *Lots of storage space
Electronics *Radar Raymarine Quantum 2 *3 GPS Chartplotters Raymarine Hybridtouch (2x Axoim 12? in cockpit, 1x Axiom 9? on navigation desk) *Autopilot Raymarine Evolution with p70Rs display and S100 remote control (p70Rs Autopilot display on navigation desk) *2 Multi instruments Raymarine i70s (depth, speed, temperature) incl. transducer - wind *2 VHF Radios Raymarine Ray90 (including handset) *AIS Class B transponder *Thermal vision camera at mast *Total of 6 CCTV cameras including Interior camera *NMEA Engine information interface for chart plotter *All-In-antenna at mast top (VHF, FM, TV-analog and DVBT) *2 Compasses Silva, illuminated
Electrics *Generator Fischer Panda 15000i, 12,0 kW / 15,0 kVA *Air condition Dometic, 60.000 BTU, 6 units: saloon and cabins, incl. 2nd shore power *Heating system Eberspacher, hot ring with blowers in each cabin and head *Water maker, 230 V, 200 l/h *Bow thruster Max Power 24V, retractable *Stern thruster Max Power 24V, retractable *Electric anchor windlass Quick 2000W,automatic fuse, with remote control and chain counter QNC CHC in cockpit *Electrical deck wash pump inside anchor locker *Freshwater system with electric pump and 40 l hotwater, heated also by main engine, freshwater dockside connection in transom *Electric bilge pump (+Manual bilge pump) *Batteries (lithium > 1x Start 90Ah AGM + 3x Service 460Ah LiFePO4 (Mastervolt, Total 1380Ah) + 2x Thruster AGM) *Battery charger *CZone control system *Solar panels (mounted on superstructure) *Isolation transformer Victron Energy 7000W *Additional Inverter/charger, 12 V / 2500 W - 120 A incl. AC Panel *Shore power connection with cable *12 V and 230 V electric system with digital switchboards, bus system, 230 V shore power and sockets in cabins and heads *2 Flat TV's, on master cabin and in saloon (TV lifting system in saloon) *Stereo system Fusion MS-RA770 Multimedia Radio with Wi-Fi and touchscreen for saloon and cockpit, wireless link - remote control via mobile devices *Subwoofer FUSION MS-AB206 with integrated amplifier in saloon *Exterior and Interior loudspeakers Fusion (8 high-end 2-way speakers – 2 cockpit, 4 saloon, 2 master cabin) *Remote control in cockpit FUSION MS-ERX400 *Starlink (2 units) *LED Navigation lights *Spreader lights, LED, 4 up and 4 down *4 Underwater multicolour lights below transom (red,green,blue,white)
Deck *Flexiteek (colour: Scrubbed Black) on side decks, teak cockpit floor, cockpit seats and helm seats *Large cockpit locker on starboard side with entrance ladder + Stowage for running rigging at helm position + Freezer Vitrifrigo *2 Cockpit settee, one L-shaped, one straight shaped *Cockpit table, electrically retractable, convertible into sunbed incl. upholstery: Diamante, colour: Carbon *2 Helm seats *2 Steering wheels Carbonautica Y-spoke -Jefa Steering (composite, black color) mounted on consoles *Railing, stainless steel tube and wire, incl. integrated boarding ladder on both sides and aft swimming ladder *Pulpit and pushpit, stainless steel *Teak rub rail *Refrigerator Isotherm in cockpit *Foredeck sun bed cushions (3) *Cockpit cushions with backrest *Cockpit shower (warm and cold water) *Anchor locker at bow *Bow anchor fitting with double roller *Anchor Delta 40 kg stainless steel with Ultra Flip swivel and 100 m stainless steel chain *2nd anchor *2 Winches Lewmar 65 CAST electrical with automatic fuse *Deck hardware Selden *Traveller Selden *Covered halyards and control lines lead to cockpit helmposition *Additional spectra halyard *Organizers and jammers *8 Retractable mooring cleats *Handrail on coachroof *Mainsheet system *Windscreen with openable hatch *Panoramic deck saloon windows and glass roof with 2 big hatches *Openable and 2 small hatches, *Portlight in foredeck with 2 big hatches, openable and 4 small hatches, openable *6 coach roof portlights, openable and 1 window in cockpit, openable
Rigging *Rig, anodized aluminium with electrical inmast furling system, kicker, standing and running rigging *Aluminium mast Selden with 2 spreaders *Aluminium boom Selden *2 Electric jib furler Selden Furlex 400 E MkII (one for jib, one for genoa including genoa tracks) *Gennaker package incl. halyard, 2 sheets, 2 blocks and padeyes
Additional equipment *Dinghy garage *Dinghy + Air compressor for tender *Electric outboard engine 3 HP (with 2 batteries) *Hard top Bimini sides and sliding middle canvas top (colour: Light grey) *External sunshade for saloon w indows *Bathing platform, hydraulic fold-out, with remote control *Gangway *Lots of fenders *Mooring lines *Epirb *Gas leak detector *2 Life rafts *2 Electric bicycles (Gocycle G4, foldable) *Air Compressor for SCUBA Diving Cylinder
