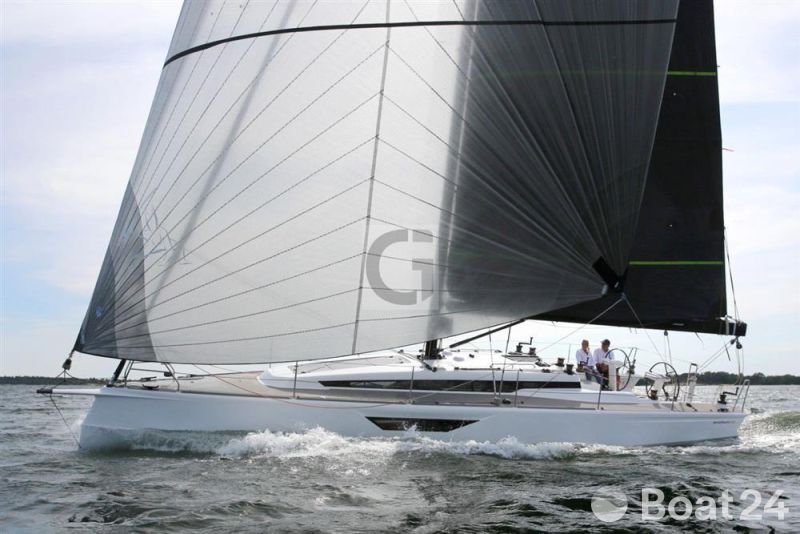

Shogun Yachts 43

Steckbrief für Shogun Yachts 43

TypSegelyacht
ModellShogun Yachts 43
Gebraucht/NeuGebrauchtboot
PreisEUR 795.000,- exkl. MwSt
SteuerungKurzkiel
MaterialCarbon
StandortKiel
PDF-DownloadHerunterladen

Abmessungen

Länge13.10
Breite3.70
Tiefgang2.70
Gewicht6370

Motor

HerstellerVolvo D1-30 30hp
TreibstoffDiesel

Bemerkung

There are yachts that promise performance, and then there are yachts that quietly reset the benchmark, like the newest Shogun 43. NIKE is precise, composed, and incredibly fast. Built in carbon fibre and epoxy sandwich, she carries a presence that is as refined as it is dynamic.

FURTHER BROKER’S COMMENTS:

Designed by Oscar & Håkan Södergren, NIKE is an updated and lighter version of the Shogun 43 performance cruiser. She is built for those who want to sail fast, often and well. A yacht that delivers line honours on the course, yet remains composed, intuitive, and quietly luxurious below deck.

As with the Shogun 50, the objective behind the Shogun 43 is to create an all-carbon thoroughbred capable of delivering exceptional speed without the usual compromises. For years, those seeking true high performance cruising have had little choice but to adapt race-bred platforms, accepting the trade-offs in comfort, usability, and short-handed handling that inevitably follow. The Shogun 43 redraws that line.

Constructed from the outset for double-handed sailing at pace, she pairs a fully optimised carbon structure and winning races with systems designed for precision and ease. NIKE is a yacht that is not only fast but accessible in a way that few in this category have managed to achieve.

Recent seasons have seen the Shogun 43 dominate leading double-handed events, taking line honours across the board, proving what the Shogun 43 design promised from the beginning.

Her specification highlights include:-
Carbon fibre and epoxy sandwich construction
Oyster White topsides
Flexi teak decking
Axe bow profile with integral spray sails
ORC optimised carbon fibre keel blade with lead t-bulb
Carbon racing rudders
Pauger high modulus carbon fibre mast and box boom
Pauger carbon fibre standing rigging
E-bar system(rudder toe angle adjustment system)
Hydraulic mast-jack - manual
Integrated bowsprit
Full North racing sail wardrobe with 3Di mainsail and jib, staysails, asymmetrics and code sails.
Electric furler for head sails and flying head sails
Antal electric mainsail traveller
Load-cell on forestay with displays in cockpit
6 x Harken Performa winches in cockpit plus additional 2 x electric Harken halyard/control line winches at companionway
Jefa steering with twin Carbonautica carbon wheels
Victron Energy electrics with charger and inverter
B&G instruments with Zeus 9’ plotters, Nemesis mast dispaly, autopilot, H5000 and AIS transceiver
Eberspacher heating
Full galley equipment
Electric carbon toilet


MANUFACTURER’S COMMENTS:

Want a cruising yacht that effortlessly combines innovative design and ground-breaking technology, to make doublehanded sailing easy and fun – even at top speed?

Enter the Shogun 43.

Developed with a focus on performance and ease of use, this cruiser goes beyond conventional and traditional design, taking performance cruising to the next level. It is the yacht for you who love speed and want to sail fast without a crew. It is for you who want to have fun on the water and maximise your sailing experience every time you go out, but still want full interior comfort onboard. Shogun 43 gives you both.
The interior of the Shogun 43 is developed to look and feel harmonious both from a sensory and auditory perspective. We wanted to create a quiet and cosy space with an interior that feels solid, and still is lightweight.

Thanks to a sleek design that can be customised specifically to your type of sailing, the Shogun 43 is a hybrid performer – whether its weekend hops or long distance cruising. Change your setup depending on the number of people onboard, weather conditions, type of sailing, preferred power, and overall experience.

The Shogun 43 was conceived as the ultimate synthesis of elite performance and accessible handling—a yacht that delivers exceptional speed while remaining easily managed by a minimal crew. The results from this season’s campaign speak for themselves, and the message is unequivocal.

Throughout the recent racing season, the Shogun 43 has demonstrated its competitive excellence across the most challenging offshore arenas. It has consistently proven its capabilities in premier double-handed competitions, including the Princess Sofia Cup, the demanding Gotland Runt, and the prestigious ORC Double-Handed European Championships held in Helsinki.

In a remarkable exhibition of both performance and durability, the Shogun 43 didn’t merely participate—it commanded the field, achieving line honors in every competition it entered.

These back-to-back victories represent more than just podium finishes; they validate the yacht’s inherent winning character. Designed and engineered to lead the fleet, the Shogun 43 fulfills the ambition of its name, demonstrating conclusively that top-tier performance is fully compatible with shorthanded sailing.

PRESS REVIEWS:

“Shogun 43 review: High velocity cruising

How many crewmembers of high tech racing yachts have wondered whether the boat could be tweaked and tamed to create a super-fast cruising machine that’s enormous fun to sail? I certainly considered the idea as a navigator in the Farr 45 fleet when there was a strong class in the Solent. Australian sailors Ian and Annika Thomson went further and refitted an early TP52, J-Bird, as an ultra-fast cruiser and occasional racer.

Mats Bergryd, a former ClubSwan 42 and ClubSwan 50 owner, is of a similar mindset, but instead he commissioned renowned Swedish father and son design team Hakan and Oskar Södergren, along with the Rosättra shipyard (better known as the yard behind the Linjett brand), to create a no holds barred all-carbon 50-footer for very fast cruising and occasional racing.

The Shogun 43 is the second model in the range, retaining the same DNA, but at a more affordable price point, and has enough interior space for family cruising.

One of the great things about the few cruising yachts that have top notch upwind performance is that, once you’re cracked off to true wind angles greater than around 50°, you’re already on a reach. It’s comfortable and fast, yet almost every other cruising yacht will still be struggling along in full upwind mode.

Equally, the Shogun 43 sails upwind at angles and speeds that would impress any race team on a similar size yacht. It proved quick to accelerate and very responsive. In a true wind speed of 15 knots and true wind angle of 40° our boat speed hovered consistently in the 7-7.5 knot range, with upwind VMG around 30% higher than many so-called performance cruisers of similar size.

But instead of requiring an army of talented crew to keep the boat constantly sailing at its best, all trimming and sail control can be carried out with only one or two crew on deck.

Hydraulics for the vang, backstays and deflectors, plus the electric traveller and toe-in adjuster for the twin rudders, for instance, all have fingertip control from the helm stations. This ability to fine tune the rig and sail trim so easily is a core part of this yacht’s concept.

The idea is to make fun and exciting sailing accessible beyond a relatively small group of die-hard semi-professional racing teams. This boat is therefore designed to make it as easy as possible for a single person on watch to get as much performance out of the rig as you might when racing with a full crew of 10 or more people.

It’s very much the type of boat that makes you actively want to hand steer and trim attentively to cover long distances quickly. When helming in gusty conditions, for example, you can drop the traveller, increase twist or apply more backstay to depower the mainsail, all at the touch of a button on the helm consoles. Reverting to the previous trim when the gust passes is just as easy.”

Yachting World, May 2024


SPECIFICATIONS
CONSTRUCTION

RCD Status:
Our understanding is that the vessel is built in accordance with CE Boat Category A-ocean.

Hull & Deck Construction:
Epoxy vacuum infused carbon fibre hull and deck
Sandwich laminate with 25 mm CNC-milled advanced cut divinycell core
Carbon fibre bulkheads epoxy-glued to the hull/deck
Beam structure and chain plate reinforcements made in multiaxial carbon fibre
Tempered and laminated glass glazings in hull
Deck and hull painted with Awlgrip Oyster white with lime green boot stripes
Deck and cockpit covered in flexi teak decking
Bottom coated with epoxy primer

Keel & Rudder:
Carbon fibre keel blade, built in autoclave by Marstrom, bulb of 2% antimony alloy lead
ORC optimized keel fin with bulb weight reduction
Twin carbon fibre race rudders, built in autoclave by Marstom in a redundant system(Note. Vessel can be supplied with crusing rudders if preferred)
Jefa self-adjusting rudder bearings, double drag links
E-bar system(Toe angles adjustment system)

MACHINERY

Engine & gearbox:
Volvo Penta D1-30 3-cylinder diesel engine producing 30hp
Volvo S130 saildrive gearbox
Water engine cooling via sea water intake and heat exchanger
Throttle Control, flush mount, Spinlock

Maintenance & Performance:
Engine hours – approx. 100 hours as of Autum 2025
Date of last engine service: Engine serviced annually

Propulsion & Steering:
2-bladed folding propeller
Instrument pods at both steering pedestals
2x Carbonautica carbon fibre wheels, 900mm


ELECTRICAL SYSTEMS

Voltage systems:
12vDC primary domestic system with 12vDC start circuit and 220vAC via shorepower or inverter.
Victron Energy GX Touch 50 remote display screen for systems monitoring

Battery Banks:
1x 12vDC 25Ah Lithium engine start battery
2x 200Ah Victronic Lithium service battreies

Charging / Inverter:
Victron Energy 12VDC/220vAC 50Amp fanless lithium-ion compatible shore power charger with Bluetooth interface
Victron Energy, inverter with multi control and battery monitor at chart table

Alternators:
12vDC 120Amp engine-mounted alternator

Shore Power:
220vAC 50Hz shore power distribution box with residual current circuit-breaker complete with cable and LED indicator

PLUMBING & GAS SYSTEMS

Fresh Water:
12vDC fresh water pressure pump
Hot water supplied via engine cooling with 30 litre calorifier or via 230vAC immersion heater element from shore power
Hot & cold pressurised water to galley, heads and shower at stern platform

Bilge Pumps:
3x 12vDC electric automatic bilge pump
Manual bilge pump
1x 3x 12vDC electric automatic sail-locker pump


TANKAGE

Fuel:
140 litres fuel capacity in 1x stainless steel tanks

Fresh Water:
260 litre freshwater capacity in 2x stainless steel tanks

Holding Tanks:
60 litre black water holding tank in stainless steel


NAVIGATION & COMMUNICATION EQUIPMENT
B&G Zeus multi-function plotter displays at port and starboard helm pedestals
B&G H5000 system with Performance CPU processor
2x B&G H5000 graphic displays in cockpit
B&G Nemesis 12” multifunction display at mast
B&G 5000 transducers and sensors including flush-mounted speed sensor and vertical wind transducer
Precision-9 Compass
ZG100 GPS Antenna
B&G H5000 autopilot system with control head and keyboard at starboard helm pedestal, H5000 course computer, RF25 rudder feedback sensor, and T1 12vDC hydraulic pilot drive.

Communications Equipment:
B&G V90S Blackbox VHF with dual stations (Navigation Table and Cockpit)
B&G V3100 SOTDMA AIS Transceiver

DOMESTIC EQUIPMENT

Galley:
Propane stove/oven in stainless steel, Techimpex Racer XL2 2-burner
Remote Propane Control by kitchen
Isotherm BI75 Refrigerator, Magnum, water cooled 75L
Stainless steel inset sink with pressurised hot & cold water supply

Heads:
12vDC electric Tecma Xlight Carbon toilet
Shower in bathroom and cockpit

Heating & Ventilation:
Heater Eberspächer Airtronic 2 D4 12vDC diesel fired hot air cabin heating

Interior Lighting:
LED interior lighting – down lights floor lights. Two colors, dimmable

ACCOMMODATION

Summary of Accommodation:
The layout has three double berth cabins, one in the bow and two aft.
The salon table is placed forward in the centre, with the mast situated aft of the table.
Three large and aligned skylights are located above the table, allowing the light to enter the salon.
Two couches, with large portlights behind them, stretch along on both sides of the salon.
The L-shaped galley is located to port, opposite the spacious heads to starboard.

Accommodation Finish:
The whole interior has a light wood veneer finish, and the floor is made in a customisable, synthetic fibre.
Underneath the wood veneer, the interior is built in using a flax fibre laminate sandwich construction with a divinycell core.
The structural part of the interior is made in a similar way, but with carbon laminate, as it is stronger. Both laminates have the same low weight, but the flax resonates a more dampened sound when you touch it, creating a more relaxed atmosphere inside the yacht.
Corian countertops in kitchen and bathroom
Alcantara upholstery

DECK EQUIPMENT

Rig:
Pauger high modulus carbon fibre mast- options for runners or single backstay built in
Pauger box-boom
2-sets of 23 degree swept carbon spreaders with lightened thru-plate and titanium tip-cups
RiggingProject Titanium headboard and mainsail halyard lock
Facnor BT3 code-0 halyard lock
2:1 Inner jib and staysail sheave boxes
Manual hydraulic mast jack
Full carbon Pauger standing rigging
Selden hydraulic vang, outhaul and deflector (only with runners)
Selden TDe electric under deck jib furler
Deck equipment by Antal
Electric main traveller by Antal
Antal Luff Cars HS 40-50J-70(no lock car) +2*DBS56 Dynablock
Self-tacker track and traveller for jib
Karver KF3.0 Fueler w.3:1fr sheave and KTS 3.0 adapter (top down)
Cyclops Smart Fittings Gateway – Hydraulic gateway for NMEA with readout on 2x B&G HV 10/10 displays
Cyclops Loadcell for forestay
Dynema running rigging
Lazyjacks

Winches:
4x Harken Performa 50 manual self-tailing cockpit winches
2x Harken Performa electric self-tailing companionway halyard/control line winches.
2x Harken Performa 50 manual backstay/runners winches

Sail Wardrobe:
North Sails 3Di 870 raw full batten square-top mainsail
North Sails 3Di Ocean pin-head mainsail with 3-reefs
North Sails 3Di 870 raw furling jib -J2
North Sails 3Di Ocean self-tacking furling jib
North Sails Xi 09/06 Code 75 Helix Design with top-down furling
North sails Norlon NY90 easy furling gennaker

General:
Pushpit, pulpit and guardwire stanchions polished stainless steel
Lewmar Flush 2G skylight hatches
Lewmar In-Glass opening windows in galley and head
Lewmar tinted glass portholes in aft cabin to cockpit
LED cockpit lighting

Covers, Cushions & Canvas:
Covers for pedestals and wheels
Mainsail cover
Jib cover
Double cockpit bags for sheets, aft in cockpit

SAFETY EQUIPMENT:

General note on safety equipment: Any safety equipment such as liferafts, Epirbs, fire extinguishers and flares etc. are usually personal to the current owner(s) and if being left on-board as part of the sale of a used vessel may require routine servicing, replacement, or changing to meet a new owners specific needs.

LED navigation lights
MOB-ladder & Stern ladder


VIEWING ARRANGEMENTS
Lying: Kiel, Germany

Available to view strictly by appointment

Office Hours Mon- Fri 0900 – 17.00
Saturday by prior appointment

For more information or to arrange a viewing please contact us.

Please Note: Due to the varying locations of our yachts, your travel time and the distances that may be involved, we recommend that you only make arrangements to view if you are actively considering purchase.

Lead Broker: Matias Renlund – Grabau International (Scandinavia)
Tel: +358406861501
Email: ######@grabauinternational.com
