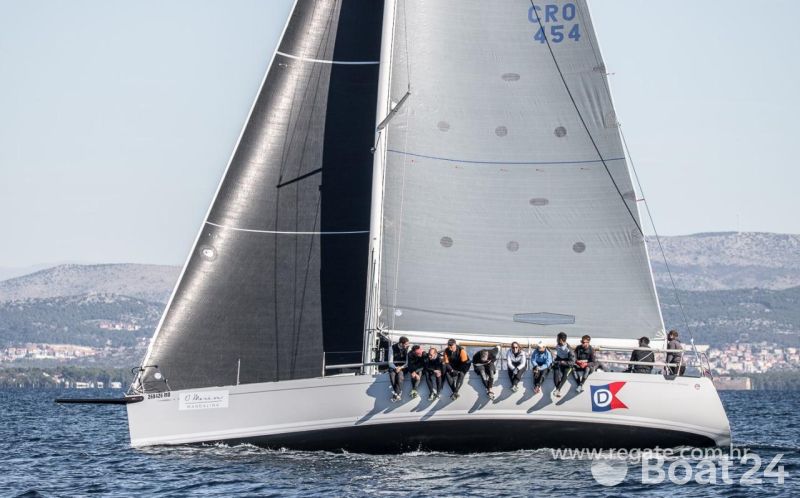

The Swan 45 is a one design racer-cruiser, designed by Germán Frers. This 45-foot yacht combines performance with comfort, timeless design, high-quality materials, and excellent sailing capabilities. She still has everything it takes to be competitive in IRC/ORC Classes.
Fully equipped with various sails! Lots of renewals between 2020 and 2024.
Registered under Croatian (EU) flag, VAT paid.
Layout: 2 cabins, 2 heads.
Powered by Volvo Penta D2-55 diesel engine with 53 HP power.
Contact us for more details or to arrange a viewing.
Yacht Specifications:
GENERAL *Construction Material Grp *Engine Volvo D2-55, 39 kW, 53 Hp *Tanks Fuel 210 l, Water 320 l *Electrical System Dc 12 V : Ac 220 V *Designer Germán Frers *Delivered 2005 *Flag Croatia *Classification Category A
DIMENSIONS *Length Overall Meters 13.83 / Feet 45.37 *Length Of Waterline M 12.07 / Ft 39.60 *Beam M 3.92 / Ft 12.83 *Draft M 2.80 / Ft 9.19 *Displacement Kg 9,500 / Lbs 20,940 *Ballast Kg 4,310 / Lbs 9,500
HULL *Glass / vinylester laminate with carbon reinforcements *Sandwich topsides and single skin bottom *Fiber reinforcements are multiaxial or unidirectional. *Structural bulkheads are of veneered sandwich construction of marine grade waterproof plywood. *Bottom stiffeners reinforced with unidirectional carbon and multiaxial grassfire in selected areas. *GRP engine beds. *Topsides finished in white gelcoat *Cove and boot top stripes in dark blue gel coat. *Composite mast step with movable shoe. *Stainless chainplate deck fittings -Hull finish *Bottom is faired and finished with Durepox, fine sanding to 800 grit. -Keel *Antimony alloyed lead bulb and fin with upper flange recessed into hull. *Fin bolted to hull with high tensile steel bolts. *Keel is faired to Zero Tolerance with template control *400 Kgs weight adjustment by 8x removable lead pigs -Steering System & Rudder *Foam filled rudder with carbon/epoxy stock. *Aluminium quadrant. Vectran cable steering with roller bearing sheaves. *Composite pedestal integrated with cockpit sole. *Alloy 1600mm recessed steering wheel 0.9 turns H.O. to H.O. *Elkhide leather on wheel Alloy *emergency tiller
DECK *Advanced laminate sandwich deck with unidirectional skins and low density closed cell foam core. *Teak laid side decks, cockpit seats and floor glued and vacuum bagged *Coachroof and coaming non-skid repainted in 2022 Gas bottles in port side locker -Deck Equipment *Stainless steel pushpit, pulpit and stanchions 600 mm high life lines *30 mm high teak toe rails forward of mast. *Composite mast collar. *Headstay attachment on stemhead. *Folding eyes for harness attachment in cockpit *Removable anchor windlass on foredeck -Deck Canvas *Mainsail cover *Sprayhood *Wheel cover *Sheet/halyard storage bags in cockpit -Hatches & Ports *Cockpit hatch for steering system access. *1 Saloon overhead hatch — converted to magic wheel inhauler system *1 Foredeck hatch Lewmar size 60 *1 Ventilation hatch in fwd head Lewmar size 03 *4 Fixed coaming windows *4 openable coaming portlights - in aft cabin, aft head, galley and navigation area *1 portlight from aft cabin to cockpit *1 hatch for gas bottle locker *Anchor stowage hatch *Tinted acrylic main companionway sliding hatch with custom drop down washboard -Winches *Primary 2 x Lewmar 60/3 ACR *Mainsheet 2 x Lewmar 50 STOR *Halyards 2 x Lewmar 48 STOR-SR -Sail Handling Systems *Harken aluminium jib sheet tracks *Harken aluminium main sheet track *Harken halyard lead blocks Harken foot blocks for *genoa Spinlock clutches
INTERIOR (Two-Cabin Version) -General *Floorboards of sandwich construction with laid teak surfaces *Lightweight overhead paneling *Varnished bulkheads and topsides in forward and aft cabins *Teak bulkheads and topsides in main cabin *Lee cloths for berths in cabins and main cabin White cotton upholstery with dark *blue piping in saloon -Forward Cabin *Double berth *Hanging locker *Foam mattresses over Scandi-Flex battens *Reading lights for each berth -Forward Head *GRP moulding to half height *Water tap, shower, mirror *Seawater flushing WC *Integrated shower -Aft Cabins port side aft *Double lower berth *Lower berth supported by scandi-flex battens *Lockers under lower berth *Hanging Locker *Reading lights for each berth -Aft Head Starboard side *GRP moulding to half height *Water tap, shower, mirror *Seawater flushing WC *Integrated shower *Hanging Locker *Reading lights for each berth -Galley *Gimbaled three burner stove with oven and stainless steel protection bar *Two stainless steel sinks with Oras mixer tap *Drawers and lockers *Front loading 70 litre refrigerator *Top loading 60 -litre cool box *Garbage bin -Saloon *Folding leaf table with fiddles *Lockers outboard both sides *Settee backs lift to form pilot berths both sides -Nav Station *Forward facing chart table with seat *Chart stowage under table top *Drawers under table Oilskin locker
ENGINE *Volvo Penta Marine diesel D2-55, 39 kW, 53 HP at 3.000 RPM, *Saildrive and 2-blade Flex-O-Fold racing propeller *Aluminium 150 ltr fuel tank plus additional 601itre fuel tank, total capacity 210L *Engine box removable for access Engine remote start in cockpit
PLUMBING & VENTILATION *Composite Flowtech sea cocks for all through hull fittings below waterline *Water and fuel tank level indicators *Aluminium 320 ltr water tank in three interconnected compartments *Hot and cold pressurized water with backup foot pump *Level indicator for holding tank *Deck air inlet for engine area. Exhaust outlet through transom with extractor *Seawater foot pump in galley -Drainage System *Two manual bilge pumps and 1 electric bilge pump *Whale gulper pumps for sump tanks in each head *2x Jabsco marine WC *60 ltr holding tank for forward WC "Y" valve in forward head
ELECTRONIC SYSTEMS *12 V DC electrical system with insulated return *Gelcell, 12 V 240 Ah battery bank for general service in vented box under saloon table *12 V 46 Ah engine starter batteries in service battery box *Mast foot, shrouds and stays grounded on the keel 12 V DC refrigeration -DC System *12 V DC Main electric control panel at chart table *12 V outlet at navigation and in cockpit *One reading light above each berth *Recessed halogen dome lights overhead *Flexible chart light and red night light a navigation station *Separate main entrance light *Switches for headlights and masthead light in cockpit Navigation Lights -AC System *Shore power supply 220 V, 25 A with 15m cable -Chargers/lnverters *Battery charger Mass 12/80 *130 A service alternator with 3-way regulator and 60 A alternator for starting battery -Sailing Instruments *Raymarine *Steering compass mounted on pedestel -Communications Systems *VHF SIMRAD RD68 with flush mounting *Entertainment Systems *Sony AM/FM/CD stereo system Interior and exterior speakers
MAST & RIGGING *Hall Spars carbon fiber two spreader mast, 15/16 fractional rig, spreaders swept 20 degrees. Carbon fiber boom & spreaders All clear coated *Carbon fiber Hall Spars double taper spinnaker pole, track and tackle on mast *Inner forestay with tuff luff for racing *Harken furling headstay for cruising *German mainsheet system *Discontinuous shrouds Navtec rod. Deck turnbuckles Series 800 *Combined mainsail luff groove and track system *Custom inhauler system *12:1 Car puller system with custom cam cleat in cockpit coaming *2 x Navtec 2 speed, hydraulic panels in cockpit controlling backstay and outhaul *24" hydraulic cylinder for the backstay *Quick release for backstay *Windex with light at mast head, 2 coaxial cables
Safety Equipment *Fire Extinguishers *Fixed c0 2 fire extinguisher in Engine compartment with release handle in companionway
SAILS -RACING: *North 3Di Main, (ENDURANCE 760 19,600 Dpi) Year 2020 *J0, (Code 55 NPL code Xi Xi06 CD 78 sq met. Furling) Year 2020 *J2, (JIB 2 Medium 3DI Carbon) Year 2019 *J3, (NPL Sport Xi Carbon NLX122AC v2, 52,95 sq met.) Year 2023 *J4, (NPL Tour Xi Grey NorLam Xi 14 Grey GRC Year 2021 *A 1.5, (Asymetric Super Lite/Kote SK 60 CTDR 183,41 sq met.) Year 2021 *A4,2022 *Storm Trysail, (15,8 sq met orange) Year 2021 *Storm Jib, Year 2021 -CRUSIING: *MAIN (DACRON) *ROLL JIB (DACRON/PENTEX)
WORK LIST FROM 2020 TO 2024 -New upgraded Raymarine instruments with i70s multifunction colour display -New depth, speed transducer -New 21 square meters of teak deck and cockpit (2022) -New painting of the Hull (2023) -New antifouling (Yotun hard racing 2024) -New Gennaker Pole in carbon 1.5m -2020 -New Rod Headstay -2022 -New Tuff Luff (Harken) -2022 -New Halyards (5 pcs 10 & 12mm) -2023 -NDT test using PT methods for Shrouds -Overhauling Volvo Engine -2023 -Overhauling Hydraulic system -2023 -Overhauling anchor winch -2022 -Overhauled Auto Pilot -2023 -New Propeller -2023 -New Fresh water pump -2023 -New Sea water pump -2023 -New Alternator DRB 1490 -2023 -New Battery with transmitter battery pack 1 pcs -2022 -New S-A Roller bearing 172mm on rudder -2023 -Replaced all 6 plugs -2023 -Repainted engine -2023 -New gas cooker -2023 -Repainted whole boat under gratings -2023 -Revarnish all interior and gratings -2023 -New lights -2021 -New curtains -2021 -One new toilet -2021 -New speakers 80W -2022 -New anchor with 50 m chain + rope – 2020
