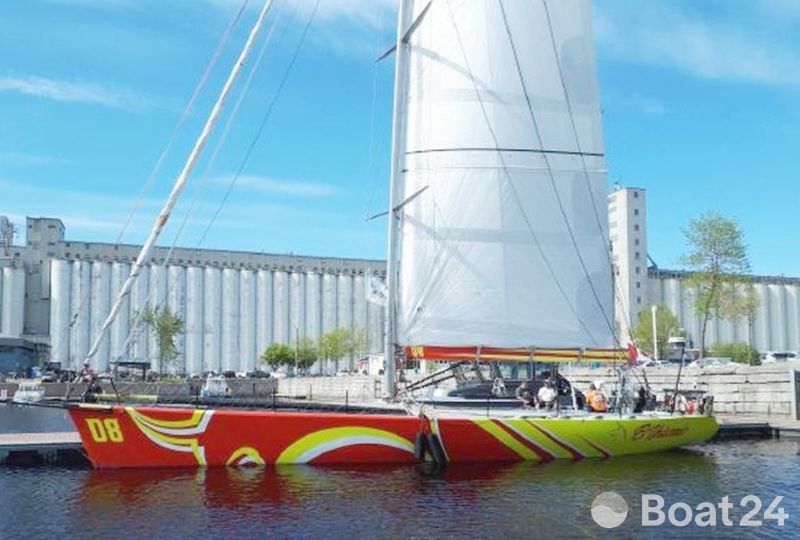

NAME: Original name : Sweedish Match VOR 60 designed by Bruce Farr and built by Cookson Boats NZ. This VOR 60 was originally named Swedish Match, it competed in the 1997-98 Withbread Round the World Race and finished 3rd. Second name was Nokia and competed in the 1999 Sydney to Hobart Race with line honours. Boat have been stored inside a wharehouse from 2003 to 2009, it was used in Norh America for training and Transatlantic racing. The sailboat has been out of the water 6 months a year and especially from 2020 to 2024. LOCATED: Punta Lagoa Marina in Vigo, Spain the boat is in very good condition, professionally maintained and upgraded over the years. Canadian documented vessel. NOTE: Consider that this sailboat has been Sweedish Match at rest in a warehouse in Sweden for more than 6 consecutive years and then about ten years he has been stored 6 months a year in winters in Quebec. The El Unicornio has never been damaged or suffered any accidents and then nothing has been neglected for its maintenance. Hull material: Material Coque kevlar, epoxy with Kevlar and cored with Corecell and Divinicel. States, new features or additions in blue.
Builder: Cookson Boats NZ Designer: Bruce Farr
ENGINE Engines: Yanmar 4JH2TE Propeller: 4 blade Max Prop Econo ( 2018 ) Notes: Yanmar 4JH2-TE, 4 cyl (completely overhauled ) New turbo charge ( 2019) 1 spair shaft (stored in Canada) Propeller- 4 blade Max Prop Econo ( 2018 ) 59 HP at 3200 rpm./ special gear box ratio 3,20. New fuel lines, new pre-filter assembly, new air filter assembly ( 2019), Fuel tanks : 2x170L + 1x100L
TANKS Fuel: 2x170L + 1x100L l Water: 200 l FUEL: FUEL TANKS: 2x170L + 1x100L WATER: 1 solid tank 200L (fresh water pump)
GALLEY 2 burner stove on gimbals ( Propane 1 lb screw-on tanks used.) 2x 45L coolers 3x 90L coolers 1 fridge/freezer (to check) 1 solid tank 200L (fresh water pump) 1 stanless sink 1 foot pump for ocean salt water pump 1 foot pumps for fresh water.
NAVIGATION INSTRUMENTS Electronics: Raymarine GPS: Yes VHF: Yes Automatic pilot: Yes Radar: Yes NOTES: 2- Wind Vane and cups for masthead ST60+ 1-RayMic 2nd Station, Ray55, Ray218 2-ST70 Autopilot Control Head ( 2019 ) 1-SmartPilot X-30 Corepack (course computer, compass and rudder feedback) 1-SmartController Wireless Autopilot Remote with Instrument Repeater 1-Forward long wind transducer - ST60 & ST290 1-ST70 Multifunction Color Display 1-ST70 Depth Transducer Pod 1-ST70 Speed Transducer Pod 1-ST70 Wind Transducer Pod 3-ST70+ Multifunction Color Display 2-ST70+ Instrument Keypad (2017) Seatalk 2 junction box - 5 way 1-Auxiliary Alarm 1-Raystar 125 GPS Sensor
.. AND MUCH MORE. ASK FOR THE COMPLETED EQUIPMENT
SAILS Main sail 2010: North Sails gaterback/carbon with 3 reef points ( in very good condition stored in Canada) Main Sail 2019 : North Sail , ultra XC carbon/ spectra, carbon battle, with 3 reef points. ( on boom) J1 : 100% North Sails light kevlar : good shape J1 : 100% North sails gaterback/carbone : very good shape J2 : 2019: 90 % Great Circle offshore twaron/carbon: ( never used ) J3 : 2019 :75% Grest Circle offshore, dacron two ply: very good shape(used only 2020 ) Stay sail : North Sails kevlar, ( good shape ) Reacher : North Sails, kevlar ( stored in Canada ) 2 Headmast Spinnakers on sailboat with 2 sockets: ( very good shape ), 3 Headmast Spinnaker ( very good shape, stored in Canada) 1 Frac. Strong, Spinnakers spectra : ( very good shape) Storm Jib : (good condition ) Blue mainsail cover. Several other sails ( stored in Canada: more spinnakers, reacher. jibs, battles, etc... ) Mast: Aluminum Boom: Aluminium Rigging : Halyards and ropes ( 5 halyards, 6 sheets spi. , 6 jib-sheets, 2017: custom Regatta halyards (1 headmast spinnakers, 1 frac spinnaker, 1 mainsail) 2019 : 4 Regatta. Braids jib sheets 2018: 6 new rope bags 2019: all new ropes for reefs lazy-jack Added : 1 Facnor 7700 furler 202 with 1 new anti-twist line .. AND MUCH MORE. ASK FOR THE COMPLETED EQUIPMENT
ELECTRICAL Generator: Yes 12V Motor Alternator (new ) 4 X 250 amps new battery 1 x 12V start engine new battery 1x 12 V start generator ( new 2023 ) Generator 14.5 hp, Nanny diesel 2012 / 2 alternator 100 amps (to be taken out for upgrading). Total new electric system , all new switch, pannel control, etc... New cables for service and engine batteries 2012 Entire refit of the navigation table (12V switch, LED lamps, bus bars, new cables) 2013 All exterior lights have been changed 2017 Pro Mariner Pro Nautic 12-40 P battery charger compatible with all current ( new 2020 ).
SSAFETYY 1x 10pers life raft SOLAS ( new in 2024, ) 1 balises Cospas Sarsat (2014 revise) 1 balise Cospas Sarsat ( 2023 ) 1 balise Sart Up-to date flares (revise ) 2 SOLAS orange buoy Spare rudder connexions Back-up rudder + 2 back-up tillers 2-Interior Manual bilge pump 1-Exterior Manual bilge pump ( new ) 3- Interior Electrical bilge pump Double wire life lines Emergency tiller aft no deck 2 Danforth type anchor with 15 m length of chain to 60 m on rope Three waterproof compartments 8 individual flotation clothing 10 survival suit (professionnal)
CONSTRUCTION Keel: Lead bulb - fin keel HULL Non-skid repainted in 2024 for roof + cockpit Wrapped in 3M vinyl yellow, red and white in 2019 Note : New paint red partner Majorica easy to remove KEEL : Lead bulb fin keel ( test RX in 2022 ) On keel and hull there is normal maintenance and antifouling to be done RUDDER Spade Carbon rudder mounted through the hull. 1- Spare carbon rudder (store in Canada) Hull material: epoxy with Kevlar and cored with Corecell and Divinicel. Material Coque kevlar Appendice , rudder Carbone Non-skid repainted in 2024 for roof + cockpit Wrapped in 3M vinyl yellow, red and white in 2019 Note : New paint red partner Majorica easy to remove Keel: Lead bulb fin keel ( test RX in 2022 ) On keel and hull there is normal maintenance and antifouling to be done Look hull: Original is Dark blue (2010) , ( refit in design yellow, red and white vinyl 2019 ) Paint over the design 2029 in '' red paint of partner Majorica'' Note : the red paint is easily removed and also the blue vinyl can be removed to restore the dark blue paint. On Each side four (4 ) ballast tanks ( total recall 13 degres ) 1 Electric Pump ( Note : 1 valve to repair) Communications equipment added in the transaction. Iridium GO with PC tablet 2024 Starlink special for sea 2024
ACCOMMODATIONS Shower: Yes Marine Heads Jabsco, Johnson Pump ( water pressure ) 4 inclinable bunk beds + 1 double bed Four other special beds ( 2 each side ) Synthetic teak cabin floors ( new 2019) Well-lit interior Comfortable interior, airy Toilet with sink
