Hardly any other new technical development has spread as quickly in the maritime industry as the Automatic Identification System, or AIS for short - proof of its practical benefits, which many sailors have now also recognised and use.
It is true that the position and movement of other ships can also be detected on the radar and the probable approach can also be checked using appropriate evaluation procedures (e.g. Marpa) (CPA/TCPA). However, it is not possible to determine who or what you are dealing with. Not even the type and size of another vehicle can be reliably recognised in the radar, as the size of a radar echo ultimately only provides information about the reflectivity of the radar target. However, there does not necessarily have to be a direct correlation with the actual size of the target - keyword: plastic yacht. Not to mention indications of existing course changes and voyage-related data. In addition, reliable radar image interpretation requires a great deal of experience.
AIS data can be received more cheaply and offers less guesswork
In principle, a pure receiver on board is sufficient for traffic analysis using AIS, although this eliminates a significant advantage - namely, in addition to better "seeing", better "being seen" can also be realised. This advantage in particular can be decisive in critical situations, especially in uncertain weather. On yachts, a certain amount of effort is required to appear reliably on the radar screen of other ships, even if the sea/rain filter is turned up. The frequently used radar reflectors in slim tubular form are hardly capable of this, as the latest test report in YACHT 8/2022 confirmed.

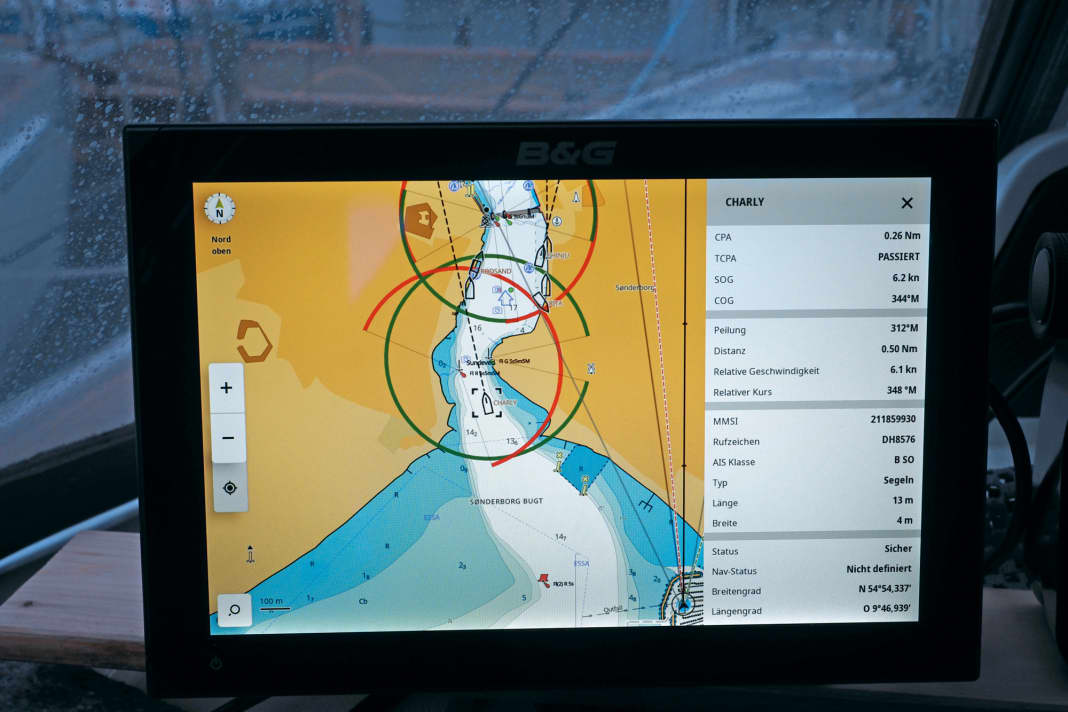

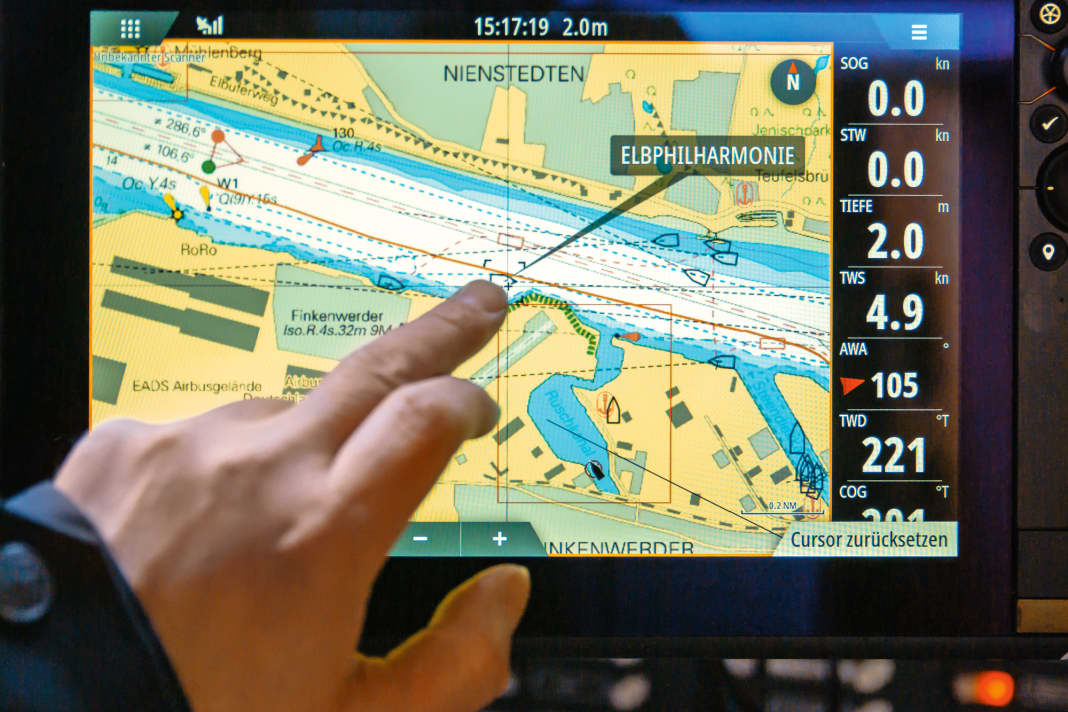

With an AIS transponder, on the other hand, your own yacht is almost certain to find the plotter screens of the big boats. The installation costs are manageable and the devices are significantly cheaper and smaller than a radar system. In addition to stand-alone models, there are combinations of VHF marine radio systems and AIS transponders as well as black box versions to choose from. Which variant is most suitable depends on the conditions on board, the desired equipment and the financial investment.
More about navigation:
But first a little theory about the AIS system. The functional principle is as simple as it is impressive: in order to identify each other and, if necessary, contact each other, all active participants regularly exchange their ship data - including ship name, call sign, vehicle type and size - via two VHF maritime radio channels reserved for the system. The MMSI number is also transmitted with each message, which can be used to call the sender directly via marine radio using digital selective calling (DSC) if necessary.
SOTDMA and CSTDMA process
To prevent the AIS transmissions of the individual ships from overlapping, a sophisticated organisational principle was developed that does not require a moderator.
The Self-Organised Time Division Multiple Access (SOTDMA) method is used for Class A AIS transponders, as required for ships that must be equipped with them. It enables participating vessels to reserve fixed transmission slots for their planned transmissions on the two VHF channels used by the AIS. In simple terms, a joint transmission or schedule is created in mutual coordination.
However, Class B AIS transponders designed for recreational boating were not initially intended to participate in the SOTDMA process. They had to make do with the so-called CSTDMA procedure. The abbreviation CS stands for "Carrier Sense". It means that these devices have to listen until a free slot is found for their transmissions. With very high traffic density, these devices therefore transmit according to opportunity rather than according to plan.
New standard: SOTDMA procedure also permitted for Class B AIS transponders
This prioritised AIS traffic for shipping requiring equipment over recreational shipping, which has several consequences. For example, the message from a CS transponder must fit into a slot, as there is no guarantee that the following slot will also be free. This in turn limits the scope of the information provided.
The frequency of transmissions was also strictly limited for CS models. In comparison, SOTDMA devices provide significantly more frequent updates for dynamic driving data.
Since an amendment to the relevant standard, Class B transponders are now also permitted to participate in the SOTDMA process. At the same time, the standard in question provides for more frequent updates of sailing data for fast boats. At first glance, this may seem less relevant for cruising sailors, but with an SO device they also benefit from secure transmission locations and intervals as well as a slightly higher output of five watts.
CS devices may only transmit with two watts. In practice, however, the range depends more on the position of the antennas than on the transmission power.
Integrated antenna switches are not available for all devices, but splitters simplify installation
When selecting a product, you should also consider the installation options in addition to the AIS standard. Especially with regard to suitable antenna locations. Every AIS transponder has a built-in GNSS receiver, for which a corresponding mushroom antenna must be installed on board. Some models come with an integrated GNSS antenna, but then a location must be found for the transponder where the satellite signal can be received.
In addition, a VHF antenna must be connected to each AIS transponder. There are basically two options here: the installation of a stand-alone AIS antenna or the use of a so-called splitter, i.e. an active antenna splitter. With the latter, an existing VHF marine radio antenna can also be used for AIS transmission and reception.
Models with an integrated splitter are generally cheaper than the sum of the individual components and are also easier to wire. Some AIS transponders with an integrated splitter also allow the connection of additional receivers such as radios or televisions.
What an AIS transponder needs on board
In terms of price, stand-alone devices with independent controls and display mark the upper class. They are also ahead in terms of functionality, but require an easily accessible installation location. Black box devices are more frugal in this respect, but are dependent on the capabilities of the analysis software used: What the operating system of the multifunction display or plotter used for AIS evaluation does not support cannot be accessed, which also applies to the corresponding apps.
However, external accessories can be used for some functions, such as a separate alarm transmitter or an external mute switch. Corresponding connection options on the transponder then become a further selection criterion.
More about electronics:
In the simplest case, an AIS transponder only needs power, a VHF radio antenna and programming to be ready for operation. However, if you are transmitting yourself, you usually also want to see the data of other yachts and ships on the plotter. Depending on the device and installation location, an additional GPS antenna may also be required.
On-board electrics: What you need to know about AIS
Owners who are less familiar with on-board electrics may be put off by the sheer number of connections required. However, the whole thing is not rocket science. Especially if the boat is already equipped with an NMEA2000 standard network, because then the transponder can simply be connected to the backbone. The same applies to SeatalkNG or Simnet networks; all you need is a suitable adapter cable, as the connectors are not compatible.
Older NMEA-0183 systems are somewhat more complex. As the transponder has a lot to communicate to the plotter, AIS devices use the standardised NMEA data format, but at a speed of 38,400 bits per second (bps) instead of the normal 4,800 bps. Devices that understand AIS data can also cope with this higher speed. However, many simple plotters only have one input for NMEA 0183, so if there are several data sources, things get tight - regardless of the speed.
As a remedy, practically all AIS receivers available today have a data multiplexer. This means that they receive the GPS data on one connection and output it together with the AIS data records on the other. The connected navigation device thus receives data from two sources via one input. In principle, this works regardless of where the data records come from.
It is rarely possible to avoid installing an additional GPS antenna
In practice, however, there are some models that only forward very specific data packets. This can cause problems if wind and water depth from the instrument system are also to be used on the screen. In this case, an external multiplexer is required.
Furthermore, it is rarely possible to avoid installing the additional GPS antenna for transponders. Most devices do not work with the position data spliced in via the network.
While the ability to operate stand-alone is a matter of course for Class A transponders, corresponding recreational marine products are few and far between. We have only found one such device that also supports the newer SO standard: It is the B400 from em-trak. There is also the MA-510TR from Icom, which only supports the CS standard. And then there is the Cortex hub from Vesper Marine, which also offers a VHF marine radio system as a combination device.
The appropriate interfaces must be available for integration into the network on board
In principle, AIS devices can be easily connected to the on-board navigation electronics via a tried-and-tested NMEA 0183 connection (in high-speed mode) - networking is primarily relevant for analysing the received data anyway, see box on the left.
An NMEA 2000 interface (N2K) is particularly interesting if the navigation electronics on board are already integrated into a corresponding network. The AIS transponder can then be connected to the backbone. However, as with VHF marine radio systems, the power supply for AIS transponders is separate, as the N2K network does not provide the power required for transmission.
With proprietary network standards, it can pay off to stick with the same manufacturer when choosing a device. Anyone navigating with a smartphone or tablet should look for an integrated Wi-Fi module so that the AIS data can reach the mobile device without additional hardware. In the case of black box devices with Wi-Fi, however, it is important to ensure that data reception is not impaired by concealed installation. A connection option for an external Wi-Fi aerial can prove helpful here.
Most transponders come as a black box, the combination with the marine radio system is rare
With black box devices, the frequently available USB port is primarily used to programme the ship data during installation. This is usually done using a laptop and software provided by the manufacturer - but is sometimes also possible using a compatible plotter, a mobile device app or a browser-based tool. With stand-alone devices, programming is carried out directly via the transponder's user interface.
Some devices also have an integrated data logger that continuously records the AIS information received as well as its own GNSS data. Some devices are equipped with a memory card drive for this purpose.
While VHF marine radio systems with built-in AIS receivers are now widely available, combination systems with integrated AIS transponders are still an exception. We only came across three during our research: the Navico B&G V60-B and B&G V100-B models. The latter is also available as the Simrad RS100-B. Then there is the Cortex-Hub V1 from Vesper Marine. The Navico devices are available either as a stand-alone version or as a black box with a separate control panel. They are both VHF DSC marine radio systems with an integrated Class B AIS transponder, although they do not have a built-in antenna splitter.
The AIS transponders presented and their special features
The Cortex hub comes with an antenna switch, but is in a league of its own. Smartphone-like control panels with a touchscreen, a wide range of integrated sensors and the apps offered by the manufacturer with various monitoring and control functions, which can also be accessed remotely with an optional mobile phone connection, give the product several unique selling points. The Cortex Hub is available in two versions: under the model designation M1 as a black box AIS transponder, which can be converted into a stand-alone device with an optional control panel, and under the product designation V1 with an additional integrated VHF DSC marine radio system.
Meanwhile, the easyTRX 3 from Weatherdock, which is available in a wide range of equipment variants for all requirements and whose range of functions can even be expanded at a later date, is probably the most versatile system among the SO standard black box solutions.
The AIT5000 from Digital Yacht also comes with numerous features and its own apps. Like the devices mentioned above, the ABT1 from Ocean Signal also comes with Wi-Fi, but without a connection option for an external Wi-Fi aerial and also without a built-in FM aerial splitter. The same applies to the Watcheye B Pro, which has a very favourable price.
Safety through AIS: be aware of the limits
The well-known marine electronics manufacturers Furuno, Garmin and Raymarine also offer compatible black box transponders for their navigation systems in accordance with the SO standard (see table for details).
Navico has a successor to the proven NAIS-500, which still works according to "CS", in the pipeline (Simrad V3100). If you want to save money and the operating standard and additional features are the same to you, you will still find simple CS standard versions on the market.
More about security:
Whichever solution you choose, in practice you should always be aware of the limitations of the system in addition to all the advantages of AIS. The most important limitation is that with AIS you can only see those ships that are transmitting AIS data themselves - and that is by no means all of them. Fishermen, for example, sometimes switch off their devices, the reasons for which are open to speculation. This means that there is always an element of uncertainty, especially when visibility is reduced.
What you should choose - Smartphone apps also an alternative?
AIS is therefore not able to replace the tried and tested radar, but it is an excellent addition. AIS promises additional benefits in MOB situations if the crew is equipped with appropriate AIS emergency transmitters.
However, if you don't own your own yacht but regularly charter it instead, you can make do with a mobile solution, provided the charter yacht is not already equipped with AIS. However, only a receiver solution can be considered, as a transponder would first have to be registered by the owner. Weatherdock, for example, offers a compact AIS receiver based on a Raspberry Pi computer.
AIS smartphone apps that display live data from other ships on the internet, on the other hand, offer no alternative and are more of a gimmick. On the one hand, there is always the question of whether the positions displayed are up to date. Secondly, this data is recorded by shore stations, meaning that the detection of a vessel depends on its distance to the nearest receiving station and not on its proximity to your own boat.
Market overview: These AIS transponders (class B) are available and what they offer
Stand-alone and combination appliances

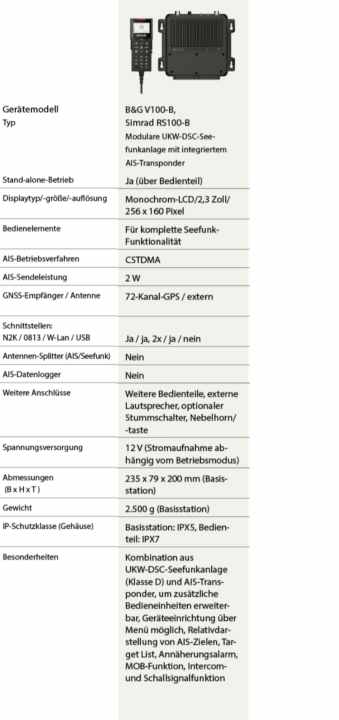

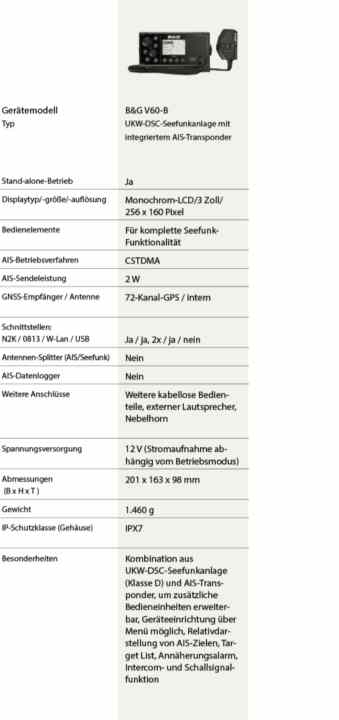

Navico B&G V60-B
- Price: 1.367 €
- bandg.com
Navico B&G V100-B
- Price: 1.873 €
- bandg.com

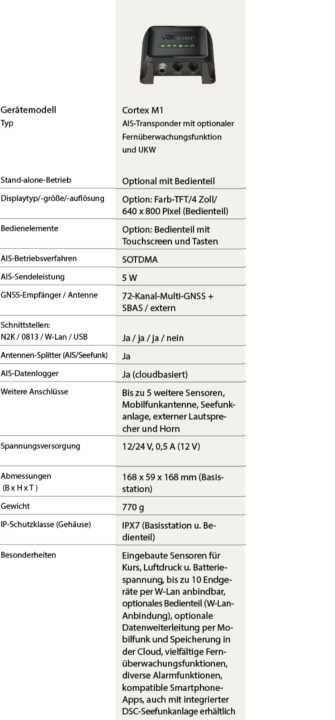

Vesper Marine Cortex M1

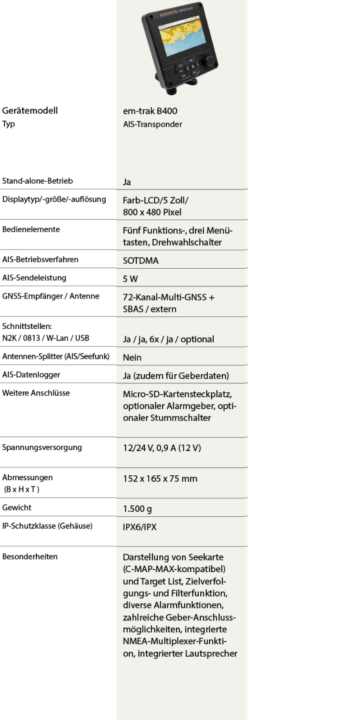

em-trak B400
- Price: 2.005 €
- marinetechnik-nord.de

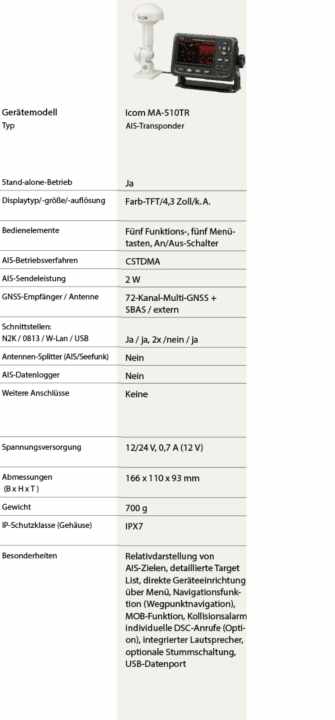

Icom MA-510TR
- Price: 1.080 €
- icomeurope.com
Black box devices

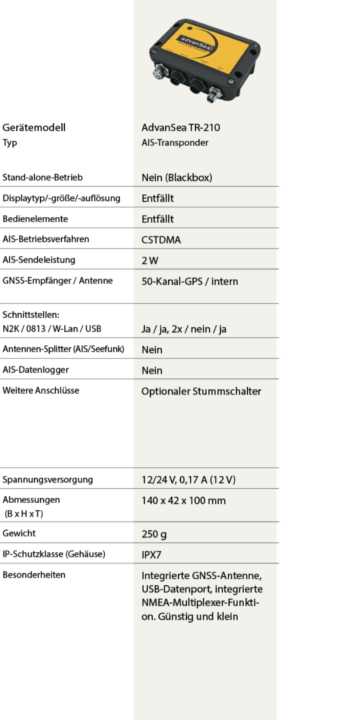

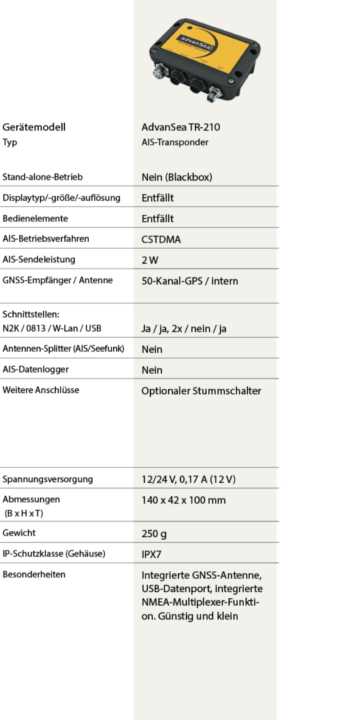

Plastimo AdvanSea TR-210
- Price: 1.211 €
- bukh-bremen.de

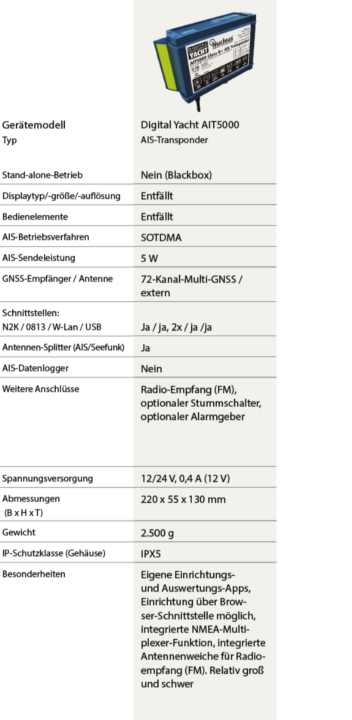

Digital Yacht AIT5000
- Price: 1.848 €
- digitalyacht.com

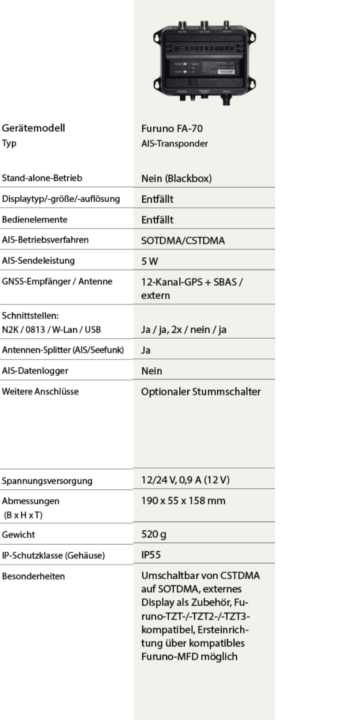

Furuno FA-70
- Price: 1.015 €
- furuno.com

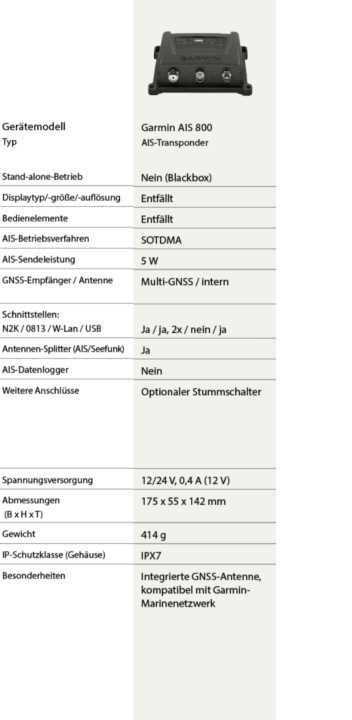

Garmin AIS 800
- Price: 1.049 €
- garmin.com

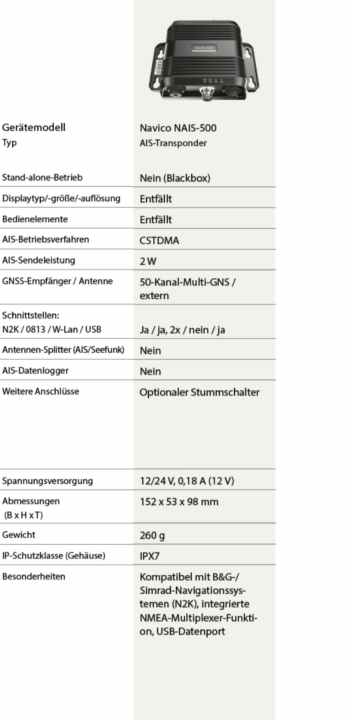

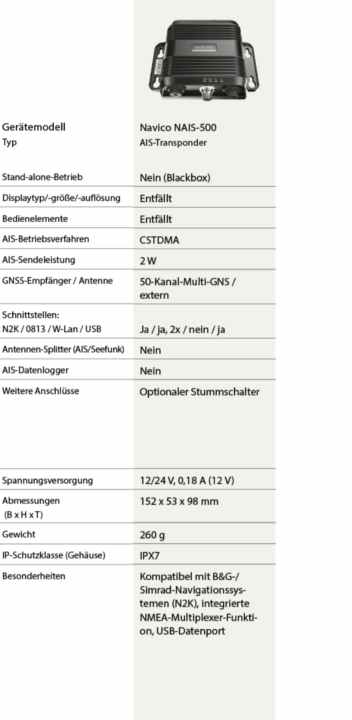

Navico NAIS-500
- Price: 939 €
- simrad-yachting.com

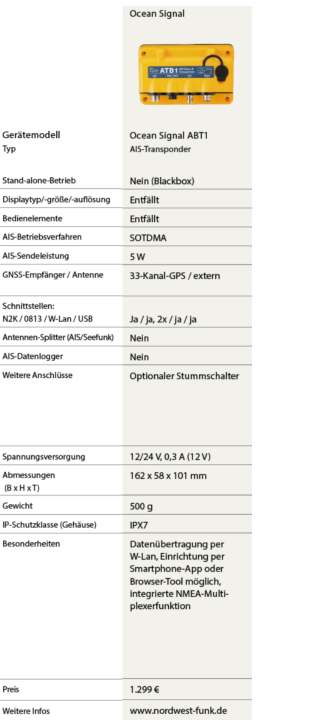

Ocean Signal ABT1
- Price: 1.299 €
- nordwest-funk.de

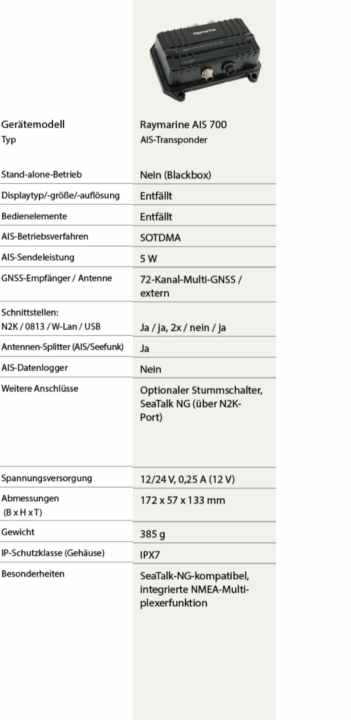

Raymarine AIS 700
- Price: 1.422 €
- raymarine.com

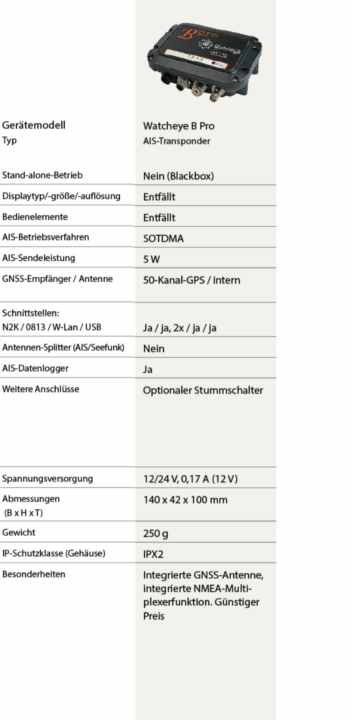

Watcheye B Pro
- Price: 898 €
- busse-yachtshop.com

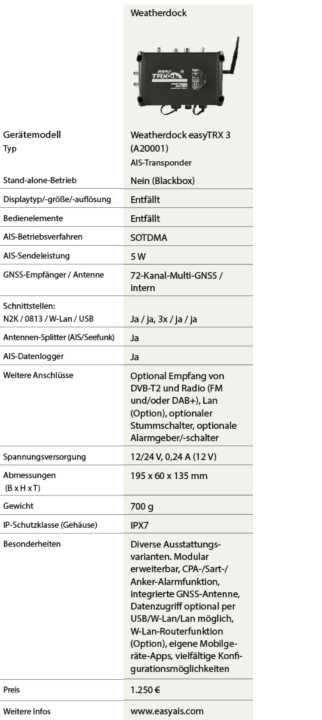

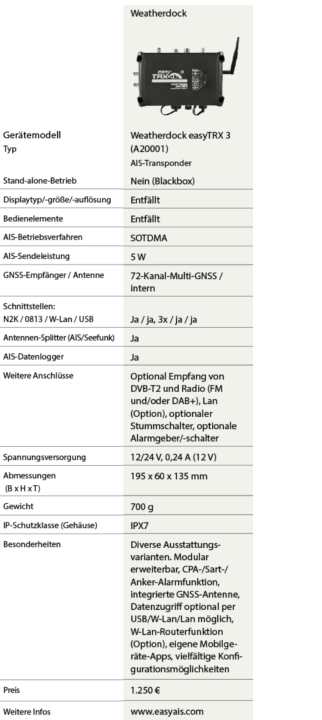

Weatherdock easyTRX3 (A20001)
- Price: 1.250 €
- easyais.com
Note: The market overview refers to the current range of yacht-compatible AIS transponders. Products that are currently not available are not included (as of 8/2023)

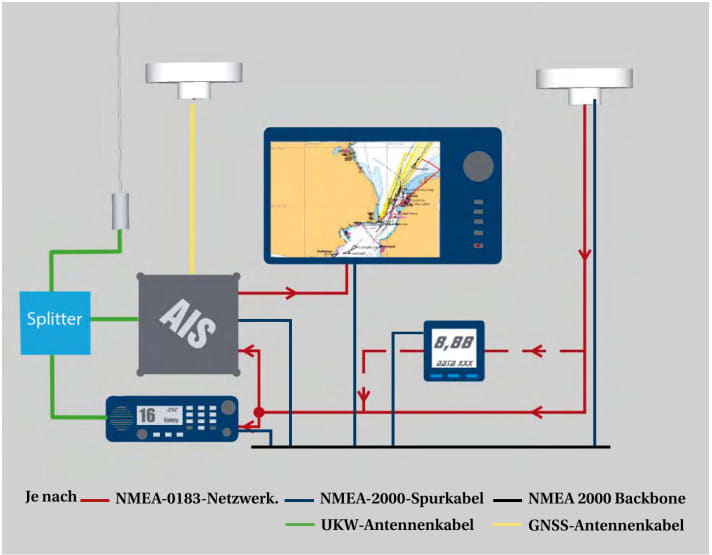

Installation diagram - how to wire an AIS transponder
