Swan Alloy is taking off
With the Swan Alloy 44, Nautor Swan is launching a new range of large-scale aluminium yachts. Sanlorenzo, the new Italian owner, initiated this foray into the world of superyachts – a segment in which volume and deck area are just as important as sailing performance. The Finnish shipyard’s largest model at present is the one built in Pietarsaari Swan 128.
The key figures illustrate the scale of the project: the Swan Alloy 44 measures 43.50 metres overall, with a waterline length of 40.50 metres. With a beam of 9.45 metres, a variable draught of between 4.30 and 6.30 metres is envisaged. This is made possible by a telescopic keel. The interior volume is expected to remain just under 300 gross tonnes. This is a remarkable figure; current motor yacht designs of the same length average around 400 gross tonnes of enclosed space.
Hot work in the Netherlands, expansion in Italy
The hull and deck are being built at Gouwerok Shipyard in the Netherlands. The structural framework for the keel and engine room is also being welded there. The aluminium hull will then be transported to Viareggio, where the fitting-out and final outfitting will take place.
In the case of the Swan Alloy 44, aluminium is not simply intended to be a new hull material. According to the shipyard, the design and plate thicknesses are optimised for weight and strength using finite element analysis. The aim is to achieve a structure that is as light and rigid as possible, whilst maintaining a high-quality finish.
Swan places particular emphasis on rounded profiles at the joints. This construction method is more labour-intensive than standard, angular solutions. It is intended to create cleaner lines and reduce the amount of filler required. The shipyard has not yet disclosed exactly how much weight this saves compared with a conventional aluminium construction.
Swan Alloy: Designs by Malcolm McKeon

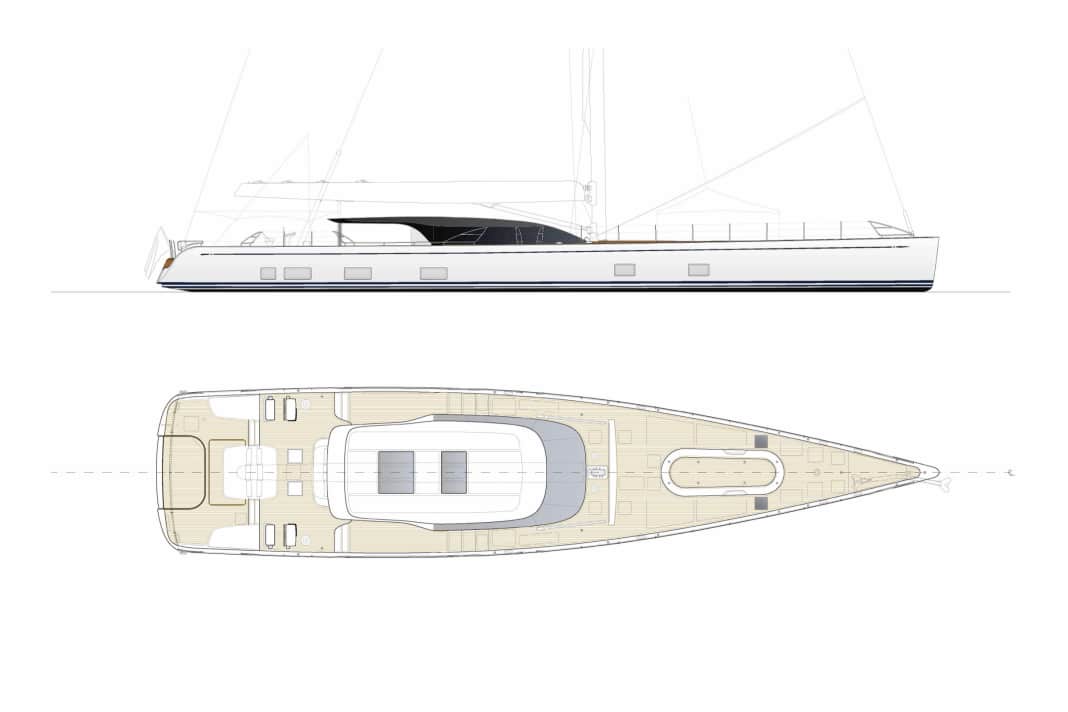

The engineering and exterior design are the work of Malcolm McKeon’s studio in Lymington. The British designer has already produced several large high-performance sailing yachts designed. For the Swan Alloy 44, he has combined a slender hull with a long foredeck, a streamlined deckhouse extending far aft and an open stern area.
The renderings show two helm stations aft, as well as several clearly separated living areas. Behind the deckhouse is a large, sunken seating area with a dining table. Further aft are lounge areas which, thanks to the wide stern platform, extend right down to the waterline. The boat is therefore said to be much more geared towards spending time on deck than earlier Maxi Swans.
The rig is supplied by Southern Spars, whilst the sails are provided by Doyle. The provisional sail plan includes, amongst other things, a blade jib, a self-tacking jib and a staysail. Nautor has not yet published any details regarding sail area, displacement or ballast ratio. McKeon describes the aim as follows: “A performance yacht should look fast, even when it’s standing still.”
A light and airy deckhouse, with a quiet interior below
For the interior, Nautors’ product committee commissioned Studio Liaigre from Paris. Large windows in the deckhouse and wide passageways between the cockpit and saloon are designed to maintain a view of the water even below deck. The renderings show light-coloured woods, cream-coloured upholstery, extensive glazing and a deliberately understated mix of materials. The person responsible for Liaigre’s maritime division is Guillaume Rolland, a sailor himself with a long track record of sailing large sails.
On the upper deck – to use Nautor’s new terminology for large yachts – the living areas are grouped around the deckhouse. The two helm stations are situated far out towards the stern. This is designed to ensure short distances and good visibility for the crew, whilst the central area remains free for guests. Below deck, guests will find five cabins: one in front of the engine room, four behind it, with the largest cabin aft on the port side. The crew are accommodated in the fore section.
Generating electricity whilst sailing
The announced dual-energy system is of technical interest. Whilst sailing, the propeller is designed to act as a turbine and generate electrical energy for the batteries. This hydro-generation can reduce the need to run generators during longer voyages, provided that the speed, propeller and energy requirements are suitable.
According to Swan, the system combines energy generation, battery storage and energy management. In developing this, the shipyard is drawing on experience gained from Sanlorenzo’s hybrid programme as well as from earlier Swan projects such as the Swan 51, the Swan 88 and the Swan 128. It remains to be seen what the battery capacity will be, what output the hydro-generation system is expected to deliver and how long the yacht can operate without the generator.
Further new Alloy and Blue Water models
The Swan Alloy 44 is not set to remain a one-off. According to Nautor Swan, the company is planning a 50-metre version, followed later by a ketch variant. The new Alloy range will thus form a line-up of bespoke sailing yachts siting above the existing Swan Maxi range.
However, the real test will come out at sea. After all, a Swan is always expected to deliver outstanding sailing performance – within its respective segment. Construction is underway, with the first delivery expected in summer 2028.
The company aims to tap into yet another new market with the Swanscape 24. The 80-foot blue-water cruiser is being developed in collaboration with Rolf Vrolijk. As Nautor’s parent company, Sanlorenzo, is listed on the stock exchange, the publicly available business plan for 2026–2028 also provides further insight into this.
Aluminium, deckhouse and superyacht interiors: would you still call that a typical Swan?
