FittingsSelf-aligning self-turner

Hauke Schmidt

 · 05.12.2013

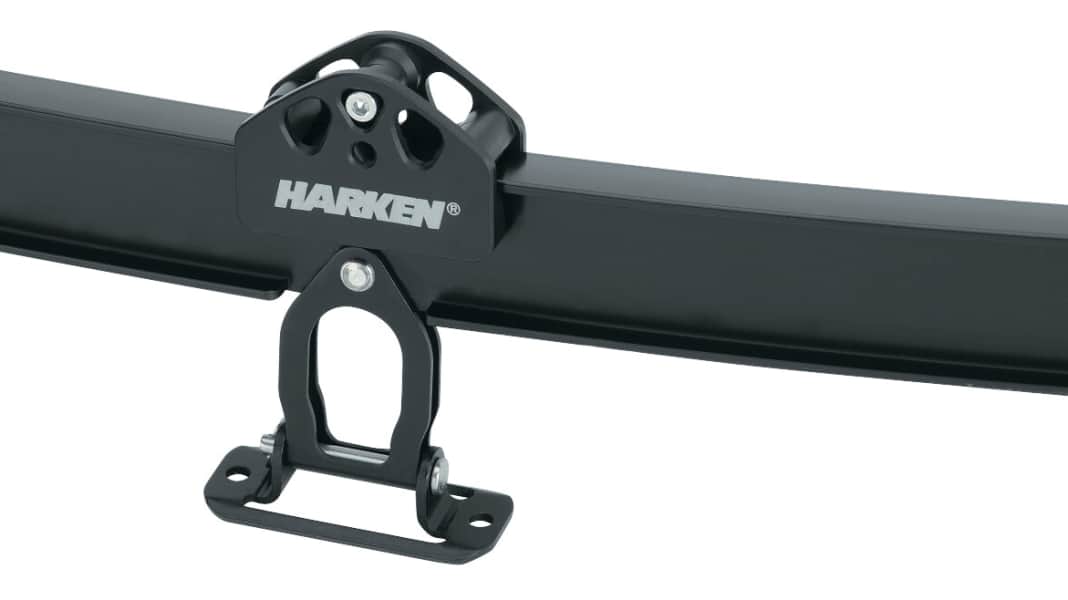

Fittings: Self-aligning self-turnerPhoto: Hersteller
The Crossbow self-tacking jib from Harken
The Crossbow jib track from Harken has articulated feet and can tilt in the direction of the sheet pull. It should therefore run particularly smoothly
The Crossbow self-tacking jib from Harken can be orientated in the direction of the sheet pullPhoto: Hersteller The Crossbow self-tacking jib from Harken can be orientated in the direction of the sheet pull

Especially for beach catamarans and skiffs under 20 feet Rake developed the Crossbow self-tacking jib system. The special feature of the system is that the feet are designed like hinges. This means that the entire rail can be moved so that it can adjust to the angle of the sheet. This means that there are no tipping loads on the traveller carriage and the traveller bearing only has to work in one direction.

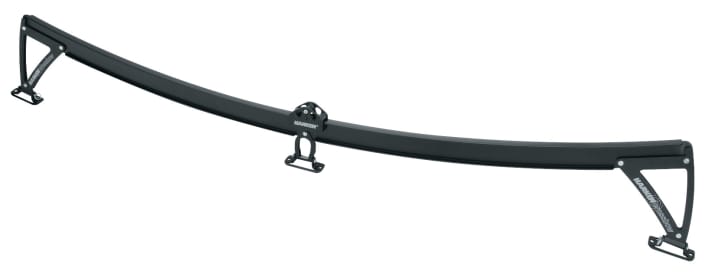

As the carriage is adapted to the curvature of the rail, there is only one length, which is 1.10 metresPhoto: Hersteller As the carriage is adapted to the curvature of the rail, there is only one length, which is 1.10 metres The tracks of the crossbow slide are slightly curved and adapted to the radius of the rail, the balls do not fall outPhoto: Hersteller The tracks of the crossbow slide are slightly curved and adapted to the radius of the rail, the balls do not fall out

The system should run very smoothly and be extremely robust thanks to the strong T-rail. As the tracks in the ball-bearing carriage are matched to the radius of the rail, only one size with a length of 1.10 metres is available. A minimum distance of 20 or 50 millimetres is available for the height of the feet. Both systems cost 680 euros each.

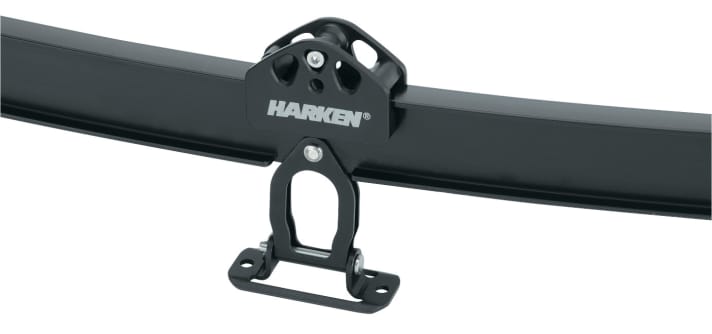

The centre foot of the Crossbow system has a large cut-out as a line guide. There is a choice of two heightsPhoto: Hersteller The centre foot of the Crossbow system has a large cut-out as a line guide. There is a choice of two heights

Further information about: www.frisch.de.
