With the B&G Zeus SRX, the manufacturer is targeting owners of large performance and cruising yachts on which the chartplotter is the central navigation centre and design element at the helm. The glass-to-edge design and the large-format 16 and 22-inch displays are aimed at modern, minimalist cockpit layouts, while the close networking with instruments, radar, autopilot and on-board management systems is designed for complex, high-quality projects.
Display and operating concept of the B&G Zeus SRX

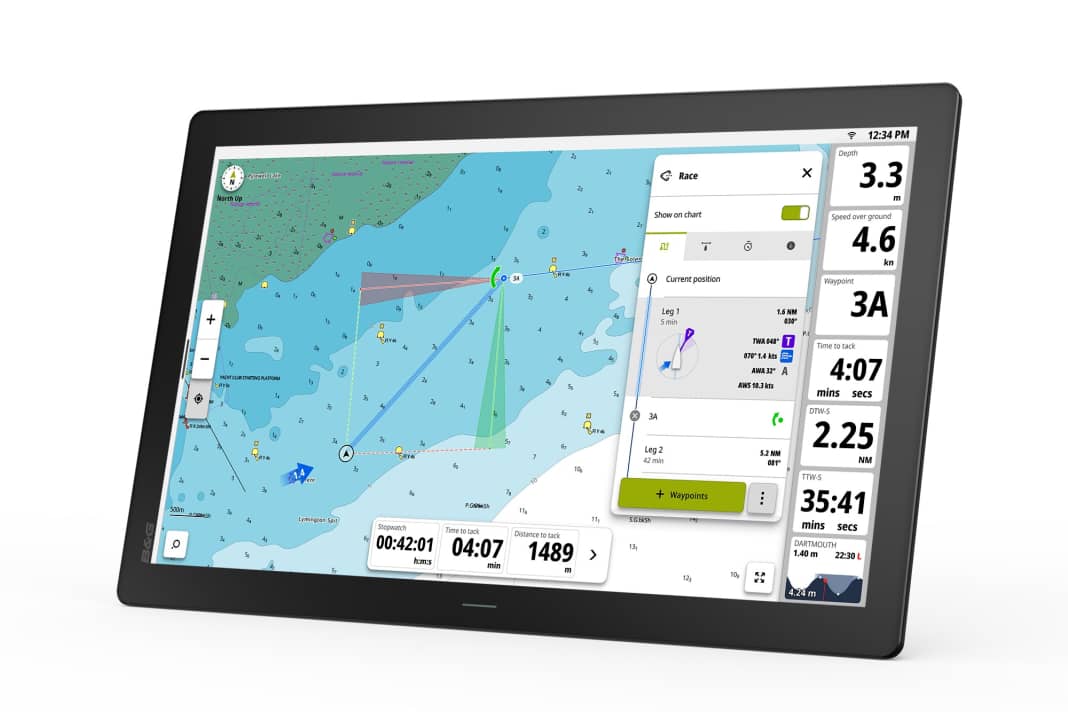

The B&G Zeus SRX uses a high-resolution Solarmax IPS touchscreen which, according to the manufacturer, should remain readable from almost any angle and even with polarised sunglasses. The glass-to-edge design makes the B&G Zeus SRX appear almost frameless and supports installation in flush-mounted consoles. With the Neon operating system already familiar from the Nemesis displays and the Zeus S and Zeus SR models, the B&G Zeus SRX offers an activity bar which can be used to access frequently used functions and which automatically hides when not in use. Quick access buttons allow direct access to levels, overlays and navigation functions so that the display remains clearly organised.
Shorter start times, fast chart alignment and smooth app changes are central to the operating concept of the B&G Zeus SRX. Predefined modes for cruising, racing and anchoring are designed to make typical display profiles available with just a few simple interventions. A setup wizard guides you through the most important steps during initial commissioning and is designed to make even extensive systems quickly configurable with the B&G Zeus SRX. The waterproof housing with active cooling is designed for high ambient temperatures and is intended for use in warm areas.
Integration on board with B&G Zeus SRX
As the centrepiece of the on-board system, the B&G Zeus SRX integrates central components such as B&G instruments, Halo radar, sail processors, autopilots, Triton 2 and Nemesis displays and wind sensors. CZone can also be used to control lighting, power supply, entertainment electronics and other consumers via the B&G Zeus SRX. Award-winning sailing functions such as SailSteer, Laylines, Routes and StartLine are available on the B&G Zeus SRX and are primarily aimed at regatta sailors.
The configurable instrument app makes it possible to display sailing data on various digital dashboards. Displays and widgets can be placed on the B&G Zeus SRX using drag-and-drop and adapted to different situations. On the network side, the B&G Zeus SRX supports Wi-Fi 5, Gigabit Ethernet and NMEA 2000; up to four IP video cameras can also be integrated. This allows the B&G Zeus SRX to be used as a central display for navigation, system monitoring and video.
Maps and security functions with C-MAP X-Gen
In combination with the new C-MAP X-Gen maps, the B&G Zeus SRX is designed to offer advanced navigation functions. Discover X charts are designed for fast zooming, detailed local information and a special night mode, while Reveal X charts unlock additional shadow relief and satellite imagery. The display aims to provide a visually sophisticated yet detailed rendering of coastlines, shoals and harbour areas.
C-MAP safety warnings are designed to automatically warn sailors of hazards such as shallow waters or buoys. The integrated X-Chart Manager allows users to download updates, upgrades and customised chart sections directly to the B&G Zeus SRX. A twelve-month premium membership for the B&G app is included when registering a C-MAP-X card, but mirroring and control are not yet available for the B&G Zeus SRX. Prices for the Zeus SRX start at around 7,000 euros.
Technical data
- Display: 16" and 22", IPS touchscreen
- Information on the installation dimensions is not yet available.
- Cooling: active cooling for high ambient temperatures
- Networks: Wi-Fi 5, Gigabit Ethernet, NMEA 2000
- Video: Support for up to four IP cameras
- System integration: Halo radar, B&G sail processors, autopilot, Triton 2, Nemesis, wind sensors, CZone
Maps and services:
- Map types: C-MAP Discover X, C-MAP Reveal X
- Additional functions: C-MAP security alerts, X-Chart Manager
- App integration: B&G app with twelve months premium with card registration. However, the range of functions is limited. Mirroring or controlling the Zeus SRX is currently not possible
