Liegeplatz: Cowes, Vereinigtes Königreich

KER 40+

Preis: €654.049, Baujahr: 2016

PACE is an incredibly well sorted and maintained modified Ker 40 . She has many modifications to the original design making her significantly faster, but without incurring a large handicap increase. National Champion in the Fast 40 fleet, she wants for nothing, with a fresh wardrobe of sails and turnkey. Perfect yacht for the Fast 40 fleet or any IRC / ORC regatta.

Preis: €654.049
Liegeplatz: Cowes, Vereinigtes Königreich
Jahr: 2016

EigenschaftWerte
HerstellerMcConaghy Boats
KonstrukteurKer Yacht Design
RumpfmaterialKomposit
Länge12.19 m
Breite4.18 m
Verdrängung4,024 kg
Max Tiefgang3 m
Anzahl Motoren1
MotorfabrikatLombardini
TreibstoffDiesel
MotorisierungInnenbord
BootsnamePACE
Leistung10.3 kW
LüA12.6 m



Construction

Ker 40+ has been designed and built in accordance with requirements of ISO 12215 Category A.



DVN/GL Approval (Germanischer Lloyd).



Hull, Deck & Superstructure Construction:

  • Carbon Fibre/Foam/Epoxy, with pre-preg upgrade to accurately control build weight.
  • Below waterline refaired and refinished by Alpha plus on arrival in UK.
  • Various factory supplied mouldings, galley, plumbing and other bits removed for racing including the heads compartment. Simple to refit for offshore requirements.



Keel & Rudder:

  • 2 x Keel fins for the boat, Mk 2 solid steel machined fin, Mk 3 Fabricated hollow fin (currently on the yacht). Both with composite and trailing edge fairings.
  • Rudder is light weight upgraded option pre preg carbon modified design and cord length.

Machinery

Engine & Gearboxes:

  • Lombardini 502 14hp engine, in aluminum.
  • Lombardini saildrive.



Maintenance & Performance:

  • Systems install and commissioning by Alpha Plus UK Ltd. with extensive modifications all through the boat history and works done is documented and is available on request.



Propulsion & Steering:

  • Gori racing folding prop.

Electrical Systems

  • Full house rewire to lighten all battery wiring systems and improve.



Battery Banks:

  • Full lithium ion battery upgrade with 3 x house batteries and 1 x engine start.

Plumbing Systems

  • All plumbing removed to reduce weight.



Bilge Pumps:

  • Custom bilge pump installation with carbon bracketry, 7 pumps.

Tankage

Fuel:

  • Allisport aluminium lightweight fuel tank.
  • Fuel system removed to reduce weight.

Navigation Equipment

  • B&G H 5000 systems with 2 cockpit GFD, 5 20/20.
  • On deck WIFI.
  • G tack under deck water proof computer, no deck screen supplied with the yacht.

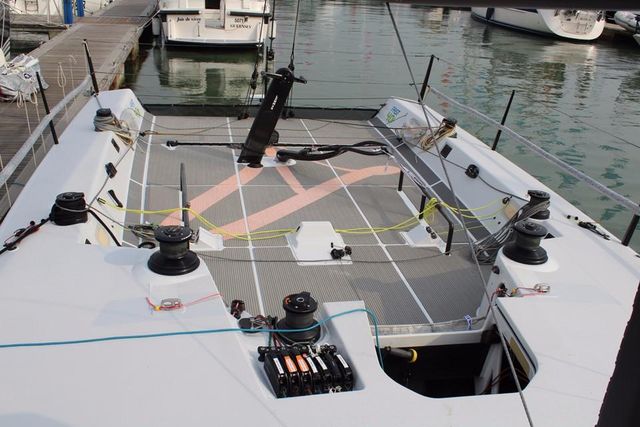

Deck Equipment

Rig:

  • 2016 Southern Spars, High Modulus, grand prix mast and boom.
  • Rig configuration:
  1. 2 Spreader Sets, Keel Stepped.
  2. Section Size 243 mm x 121 mm, Tapered.
  3. Tube Length 20.020m.
  4. Approximate Bare Tube Weight 68.5kg.
  5. Fully dressed weight 170kg.
  • Southern Spars, two spreader Mast - High modulus upgrade - 22kg weight saving.
  • Full Titanium upgrade package.
  • Southern Spars Boom - High modulus upgrade - 9kg weight saving.
  • Custom Instrument Bracket.
  • Main Halyard, jib, fractional and mast head zero Lock – cassette.
  • Carbon C6 standing rigging.
  • Carbon C6 running backstays.
  • Southern Spars mast step.
  • Gorilla headstay foil for use with EC6 Forestay.
  • Upgraded runner mounting in mast tube, works by Alpha Plus UK to drawings supplied by Southern Spars (SEPT 2016).
  • Integrated deflector system for backstay and headstay control.
  • Max working forestay load - 5100kg.
  • Custom magic wheel from Diverse Yachts to control deflector system.
  • Custom control system with exit on deck and hand line takeaway.
  • Adjustable head stay arrangement, with use of Navtec hydraulic system. Harken headstay ram. Custom install to allow for on deck control, but with no pump handle showing.
  • Complete running rigging package for inshore racing with some spares all Marlow top end PBO pure and PBO/ tech blended lines. Using mostly sk99 max cores throughout.
  • Running back stay setup 4:1 purchase and mixture of Harken 75 Black Magic and 57mm TTR blocks.
  • Twin under deck spinnaker sheet reelers in carbon.
  • Under deck remote spin sheet clutching for working sheets and string drop.
  • Custom can inhaul system with upgraded CRX jib tracks and cars.
  • Clutches - SPINLOCK, full spec with ceramic jaw upgrades and lock open clutches for mainsheet.
  • Protrim mainsheet traveler system.
  • Underdeck 2/1 or 3/1 downwind jib sheet led aft.
  • 2 x KZ furlers for the Mast head zero and Fractional zero.
  • 2017 mod to spinnaker under deck sheave arrangement by Alpha Plus UK Ltd.

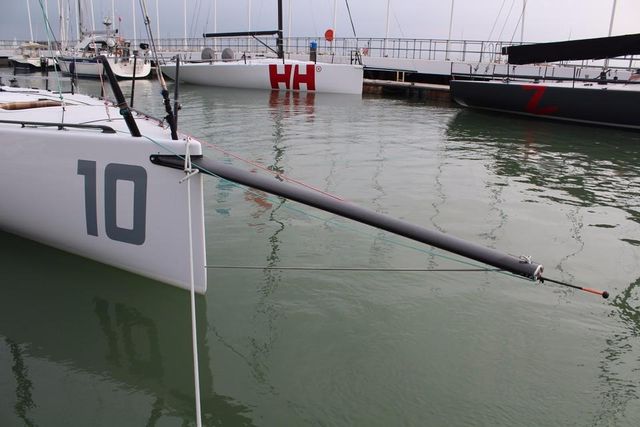

  • 2 x Bowsprit:
  1. Autoclaved carbon fibre bowsprit built by Mc Conaghy with aluminium pignose set up and bobstay standard stl length.
  2. Autoclaved High Modulus Carbon +300 mm length by Green Marine PM by Alpha Plus with 3d printed titanium pignose and rod bobstay, currently on boat.
  • Both sprits to run 2-1 tackline for zeros. Can be changed very quickly.



Winches:

  • Custom Lewmar winch and pedestal system - supplied and installed by Diverse Yachts UK.
  • LEWMAR - 60/3GPST BK ROLLER SB CF WINCH - PRIMARIES x 2.
  • LEWMAR - 50GPST BK AL WINCH - MAINSHEET x 2.
  • LEWMAR - 50 GPST BK AL WINCH - PIT x 1.
  • LEWMAR - 50ST EVO RACE+ ALLOY BLACK WINCH - RUNNER x 2.
  • LEWMAR - PEDESTAL SYSTEM INCLUDING CUSTOM DIVERSE TAKE DOWN STRING DROP SYSTEM OFF PRIMARY WINCHES.
  • SPINNAKER TAKE DOWN SYSTEM INCL DRUM & ROLLER UNDER THE FORE HATCH.
  • NON HYDRAULIC, CUSTOM DEFLECTOR SYSTEM FROM DIVERSE YACHTS.
  • LEWMAR - 250 ONE TOUCH POWER GRIP WINCH HANDLE x 5.
  • 3 x button control system, with custom clutches on gearboxes to engage primary winches and string drop systems.



Sail, Code, Year, Spec, Dpi:

  • Mainsail, Mn-A, 2016, 3Di Raw 870, 16800.
  • Jib, J1.5-A, 2016, 3Di Raw 870, 12600.
  • Jib, J2-A, 2016, 3Di Raw 870, 16800.
  • Jib, J2-B, 2016, 3Di Raw 870, 16800.
  • Jib, J3-A, 2016, 3Di Raw 870, 19600.
  • Jib, J4-A, 2016, 3Di Raw 870, 22400.
  • Asymmetric, A1.5-A, 2016, SK60/50.
  • Asymmetric, A2-A, 2016, SK75/60.
  • Asymmetric, A2+, 2016, PK 77/66.
  • Asymmetric, A4-A, 2016, SK130/90.
  • Asymmetric, MHO-A, 2016, ODL -04.
  • Asymmetric, FRO-A, 2016, ODL -04.
  • Staysail, GS-A, 2016, 3DL 860m, 10850.
  • Staysail, SS-A, 2016, ODL-04.
  • Mainsail, Mn-B, 2017, 3Di Raw 870, 16800.
  • Jib, J1.5-B, 2017, 3Di Raw 870, 12600.
  • Jib, J2-C, 2017, 3Di Raw 870, 16800.
  • J2-D, 2017, 3Di Raw 878, 16800.
  • Jib, J3-B, 2017, 3Di Raw 870, 19600.
  • Asymmetric, A1.5-B, 2017, SK60/50.
  • Asymmetric, A2-B, 2017, SK75/60.
  • Asymmetric, A2+-B, 2017, SK80/60.
  • Asymmetric, A4-B, 2017, SK150/90.
  • Storm Jib, 2016, Dacron.



General:

  • Alpha Plus built drop down painted steel shipping cradle.



Covers, Canvas & Cushions:

  • Full custom covers, bags etc.
