Liegeplatz: Ouddorp, Niederlande

Dehler 34 SV

Preis: €97.500, Baujahr: 2008

The Dehler 34 SV (Simonis Voogd Design) is a successful performance cruiser, meeting the needs of both family and regatta orientated sailors. The light weight and large sail area gives the Dehler 34 SV high performance characteristics. Dehler’s art in combining in appropriate proportion the ambience for cruising or competing is evident in this snug performer.

This Dehler 34 SV was bought for racing and before it touched the water for the first time, the keel has been adapted by a professional, Mr. Eric van Vuuren from the Netherlands. The keel was made 12 cm longer at the backside, for better upwind performance and he also re-shaped the keel and the rudder for better performance. After 2 years of racing, they changed to family sailing. The yacht is being offered by the first owner.

This Dehler 34 SV is well maintained, has a modern teak interior with a Wenge floor, grey Alcantara upholstery, approx. 1.90 meter headroom, 2 cabins and 4 - 7 berths. The white hull has just been polished, all old layers of antifouling have been removed from the bottom of the hull in June 2017. The hull has been treaded with 3 layers of epoxy before the yacht touched the water for the first time in 2008 and a new layer of self polishing International Micron antifouling has been applied in June 2017. This Dehler 34 SV has a beautiful decklayout and both the deck and the superstructure are provided with teak. 8 sails : North Sails T-Cut Dacron mainsail (2011), North Sails Dacron T-Cut genoa (2011), Hagoort Sails Maxx Voyager Jib 4 (Heavy - 2011), Hagoort Sails Maxx Voyager mainsail, UK Sails Titanium Carbon/Kevlar Membrane race mainsail, Hagoort Sails Maxx Aramid Jib 1 (Light), UK Sails Titanium Carbon/Kevlar Membrane Race Jib 3 and Hagoort Sails Spinnaker (Light Medium 0.5 - orange) with an aluminium spinnakerpole. A Jeans blue mainsail cover, genoa cover and sprayhood. The yacht is also equipped with a hot water boiler, shower in the bathroom, Webasto heating, fridge, Oppo TV, radio/cd-player with speakers in the saloon and in the cockpit, Matservolt battery charger, Raymarine C90 chart plotter (in the cockpit), Raymarine ST6002 autopilot with a wire less remote control, Icom IC-M411 VHF, Raymarine ST60 Speed, Depht and Windset, 2 blade Flex-O-Fold propeller, approx. 450 engine hours, etc.

Preis: €97.500
Liegeplatz: Ouddorp, Niederlande
Jahr: 2008

EigenschaftWerte
RumpfmaterialGFK (Fiberglass)
Länge10.51 m
Breite3.49 m
Verdrängung5,443.11 kg
Max Tiefgang2.01 m
Anzahl Motoren1
MotorfabrikatVolvo Penta
Motorjahr2008
TreibstoffDiesel
Betriebsstunden420
Treibstofftank83.28 l
Rumpf-SeriennummerDE-DEH71028A808
Reisegeschwindigkeit6.95 kn



Dehler 34 SV - Specification list


General

Shape: round bilged
Deck design: teak
Superstructure: polyester with teak and anti slip

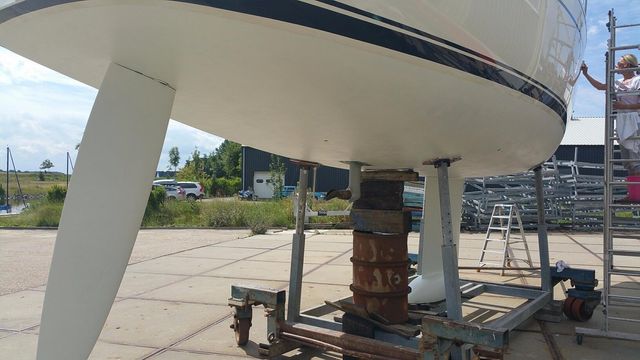

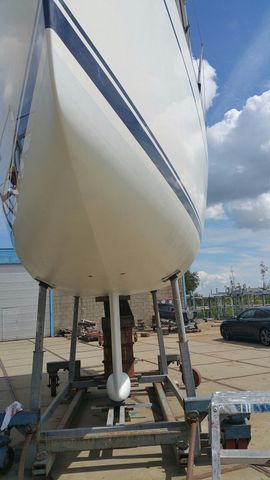

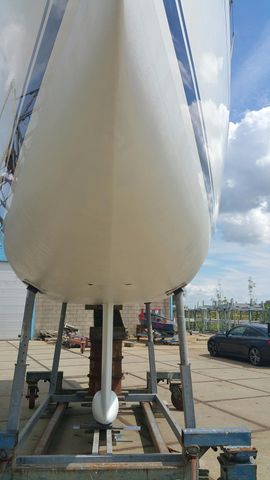

Keel: deep cast iron finkeel (shaped by a pro - for faster sailing performance) with a lead torpedo

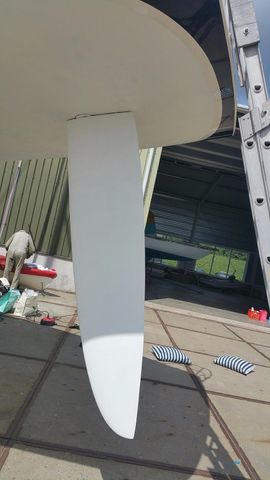

Rudder: ballanced rudder (shaped by a pro - for better sailing performance)
Steering system: Solimar pedestal, large stainless steel steering wheel covered with leather and a Jeans blue steering wheel cover
Windows: 2x Moonlight flush deck hatch, 2x Gebo window in the saloon and 2x Lewmar opening porthole in the cockpit (aft cabin and bathroom)
Load displacement : approx. 6000 kg
Ballast : approx. 1850 kg
Vertical clearance : approx. 17.62 m
Boatyard: Dehler Yachtbau GMBH
Designer: Simonis/Voogd
Build Nr.: DE-DEH71028A808
CE code: A

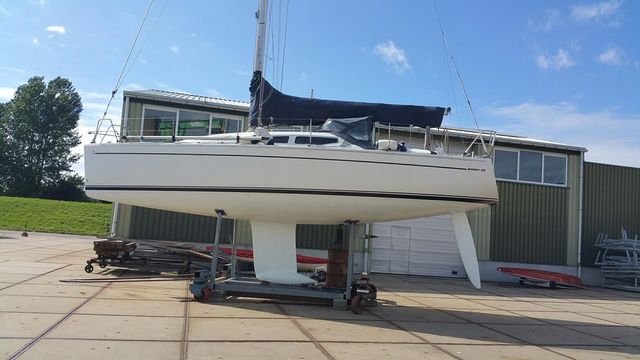

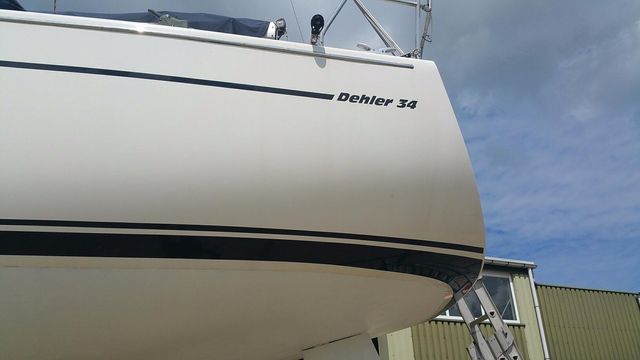

White polyester hull with a dark blue striping
Teak op de cockpit seats and teak on the cockpit floor
Folding cockpit table, which is stored in the cockpit floor

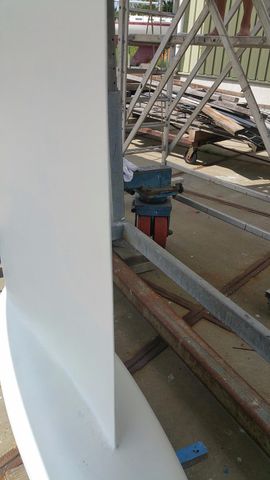

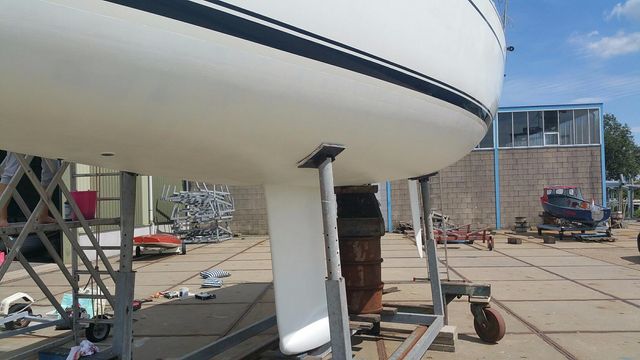

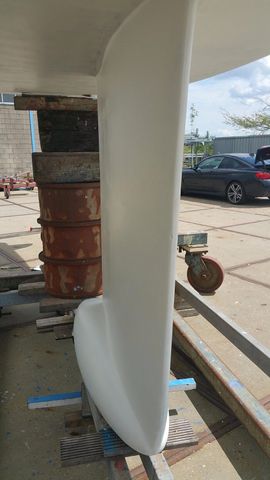

The keel has been adapted by Eric van Vuuren, it was made 12 cm longer at the back for better upwind performance

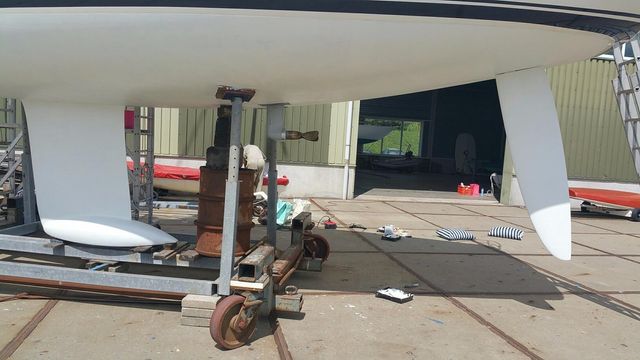

The keel and the rudder have been re-shaped and the full bottom of the hull has been treaded with 3 layers of epoxy before the yacht touched the water for the first time

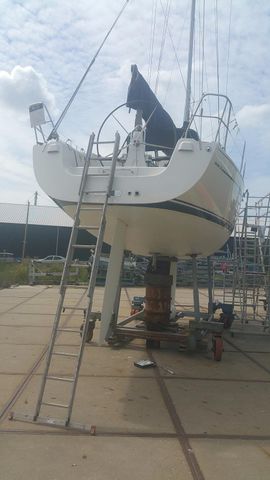

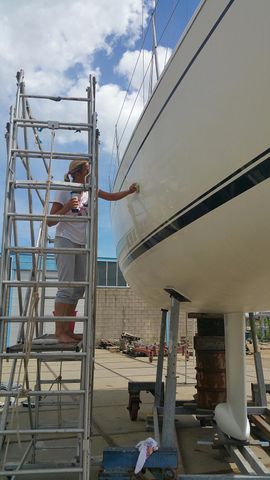

All layers of antifouling have been removed in June 2017, a layer of self polishing International Micron antifouling has been applied, the hull has been polished and a new anode has been mounted
The Dehler 34 SV (Simonis Voogd Design) is a successful performance cruiser meeting the needs of both family and regatta orientated sailors
The light weight and large sail area gives the Dehler 34 SV high performance characteristics
Dehler’s art in combining in appropriate proportion the ambience for cruising or competing is evident in this snug performer

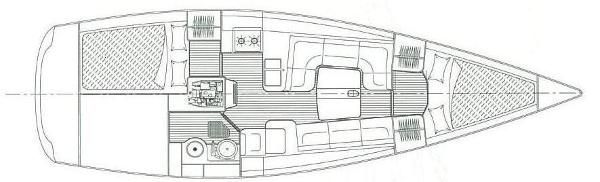

Accommodation

Material, colours: Modern teak interior with a wenge floor
Upholstery : grey Alcantara upholstery (good condition)
Cabins: fore cabin, saloon and aft cabin
Berths: 4 - 7 berths
Headroom: approx. 1.90 m
Toilet: 1x manual Jabsco toilet (pump has been renewed in 2013)
Shower : 1x bathroom with a shower
Sound system: Sony Marine radio/cd-player with 2x speaker in the saloon and 2x speaker in the cockpit with remote control
TV: Oppo TV with specially designed stainless steel turning system and an Hirschmann Car (12 Volt) Digitenne decoder
Cooking device: 2-burner Techimpex cooker
Oven: Techimpex oven
Fridge: top-loader fridge with an Isotherm compressor
Heating: Webasto with 4 blowing openings
L-shaped galley on port side, with a black worktop and a double stainless steel sink

Engine, electrics, water

Power: 20 HP/ 15 kW
Make: Volvo Penta D1-20b (engine nr: 5102351236s)
Year built: 2008
Engine hours: approx. 450 hours (but the counter has approx. 615 hours - when the contact is on, the counter keeps going and this happened in August this year - the panel was switched off after almost 1 week)
Fuel: diesel
Fuel tank: approx. 83 liter
Cooling system: intercooling

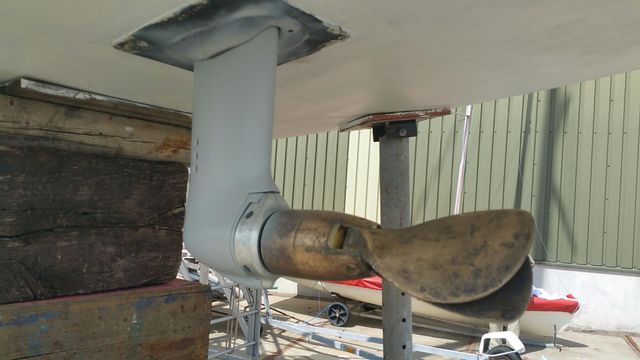

Propulsion: Saildrive with a 2-blade Flex-O-Fold folding propeller
Cruising speed : approx. 6.5 knots
Max speed : approx. 7 knots
Fuel consumption: approx. 2.8 L/H
Measuring instruments
Voltage: 12 and 230 Volt (shore power)
Operating panel
Battery: 2x 80 AH Exide Gel (2012) domestic battery and 1x engine battery
Battery charger: Mastervolt
Alternator: 1x
Water pressure system: electric water pressure system
Warm water: approx. 25 liter boiler (heated via the engine or via 230 Volt shore power)
Water tank: approx.150 liter PE tank
Holding tank: 1x
Shore power: fixed shore power connection (on bow and on stern) with a circuit breaker and a shore power cable
Voltmeter
Tachometer
Water tank gauge
Fuelmeter
The engine service has been serviced in March 2015
The engine controle panel in the cockpit has been renewed in 2017
The electric engine stop is not functioning

Rig and sails

Type: fractional rigged
Spars, stays: aluminium keel stepped Selden mast, boom and Rodkicker, stainless steel stays, double sets of spreaders, manual backstay adjuster (with a rope)
Winches: Harken: 2x 44ST, 2x 32ST and 3x Harken winch handle
Sails material: Dacron, Maxx Voyager, Maxx Aramid, Titanium Carbon/Kevlar Membrane
1x North Sails : T-Cut Dacron mainsail (2008 - very good condition - not even used 5 times), 1x Hagoort Sails : Maxx Voyager mainsail (moderate condition) and 1x UK Sails : Titanium Carbon/Kevlar Membrane race mainsail (moderate condition)
Main sail reefing system: 2x reef
Genoa: 2008: North Sails : T-Cut Dacron furling genoa (very good condition - not even used 5 times)
Genoa reefing system: Furlex TD 200 furling system (drum is mounted below deck)
Fore sail: 1x Hagoort Sails : Maxx Voyager furling Jib 4 (Heavy - 2011 - moderate condition), 1x Hagoort Sails : Maxx Aramid Jib 1 (Light - moderate condition - NOT furling) and 1x UK Sails : Titanium Carbon/Kevlar Membrane Race Jib 2 (moderate condition - NOT furling)
Spinnaker: Hagoort Sails : spinnaker (Light Medium 0.5 - orange - moderate condition)
Aluminium Selden spinnaker pole
Barber Haulers
Jeans blue mainsail cover with Lazy Jacks
Jeans blue genoa cover
The Harken genoa rails and cars have been up-graded (larger than the basic one)
July 2017 :  Winches have been greased and a new Windex


Navigation and electronics

Navigation lights: Lopo Light LED navigation lights: 3-colour mast-head-, anchor-,
steam-, bow- and stern lights
Compass: Suunto compass on the pedestal
Rudder indicator: via autopilot
Log/speed: Raymarine ST60
Depth: Raymarine ST60
Wind: Raymarine ST60
Autopilot: Raymarine ST6002 with a Raymarine S-100 Wireless Remote Control
GPS: in the chartplotter
VHF: Icom IC-M411
Chart plotter: Raymarine C 90 Wide Color chartplotter (in the cockpit)

Equipment

Anchor: 1x aluminium anchor with a rope
Fenders, lines
Sprayhood: dark blue sprayhood with a stainless steel frame
Swimming ladder: stainless steel telescopic swimming ladder (in the stern)
Swimming platform: open transom
Sea rails, pushpit, pullpit: stainless steel stanchions, pulpit, pushpit and double stainless
steel guardrail
Shower/water hose connection in the cockpit (cold water)

Safety

CE certification: A
Radar reflector: Best radar reflector
Bilge pump: 1x manual and 1x electric
Fire extinguisher: 2x fire extinguisher (have to be checked/renewed)
Gas bottle locker
Emergency tiller
